(All information courtesy of the instrument teams.)
Previous IAU Circulars
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:46:45 UT NOTICE_TYPE: Swift-BAT GRB Position TRIGGER_NUM: 570465, Seg_Num: 0 GRB_RA: 47.615d {+03h 10m 28s} (J2000), 47.804d {+03h 11m 13s} (current), 46.924d {+03h 07m 42s} (1950) GRB_DEC: +13.974d {+13d 58' 28"} (J2000), +14.026d {+14d 01' 33"} (current), +13.785d {+13d 47' 08"} (1950) GRB_ERROR: 3.00 [arcmin radius, statistical only] GRB_INTEN: 883 [cnts] Image_Peak=63 [image_cnts] TRIGGER_DUR: 0.064 [sec] TRIGGER_INDEX: 10427 E_range: 50-350 keV BKG_INTEN: 26634 [cnts] BKG_TIME: 30884.97 SOD {08:34:44.97} UT BKG_DUR: 8 [sec] GRB_DATE: 16547 TJD; 255 DOY; 13/09/12 GRB_TIME: 30897.77 SOD {08:34:57.77} UT GRB_PHI: -21.94 [deg] GRB_THETA: 47.69 [deg] SOLN_STATUS: 0x20000003 RATE_SIGNIF: 46.23 [sigma] IMAGE_SIGNIF: 7.18 [sigma] MERIT_PARAMS: +1 +0 +0 -4 +3 -3 +0 +0 +51 +0 SUN_POSTN: 170.58d {+11h 22m 20s} +4.06d {+04d 03' 23"} SUN_DIST: 120.45 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.39d {+16h 57m 35s} -19.54d {-19d 32' 28"} MOON_DIST: 153.98 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.83 [deg] galactic lon,lat of the burst (or transient) ECL_COORDS: 49.04, -3.64 [deg] ecliptic lon,lat of the burst (or transient) COMMENTS: SWIFT-BAT GRB Coordinates. COMMENTS: This Notice was delayed by more than 60 sec past the end of the trigger integration interval; COMMENTS: probably due to it occurring during a Malindi downlink session. COMMENTS: This is a rate trigger. COMMENTS: A point_source was found. COMMENTS: This does not match any source in the on-board catalog. COMMENTS: This does not match any source in the ground catalog. COMMENTS: This is a GRB. COMMENTS: This trigger occurred at longitude,latitude = 265.41,14.58 [deg]. COMMENTS: COMMENTS: NOTE: This BAT event is temporally(1.0<100sec) coincident with the FERMI_GBM event (trignum=400667700).
TITLE: GCN/FERMI NOTICE NOTICE_DATE: Thu 12 Sep 13 08:35:22 UT NOTICE_TYPE: Fermi-GBM Flight Position RECORD_NUM: 48 TRIGGER_NUM: 400667700 GRB_RA: 62.850d {+04h 11m 24s} (J2000), 63.038d {+04h 12m 09s} (current), 62.164d {+04h 08m 39s} (1950) GRB_DEC: +10.517d {+10d 31' 00"} (J2000), +10.551d {+10d 33' 05"} (current), +10.388d {+10d 23' 17"} (1950) GRB_ERROR: 7.63 [deg radius, statistical plus systematic] GRB_INTEN: 1801 [cnts/sec] DATA_SIGNIF: 13.90 [sigma] INTEG_TIME: 0.064 [sec] GRB_DATE: 16547 TJD; 255 DOY; 13/09/12 GRB_TIME: 30898.00 SOD {08:34:58.00} UT GRB_PHI: 238.00 [deg] GRB_THETA: 115.00 [deg] DATA_TIME_SCALE: 0.0640 [sec] HARD_RATIO: 0.56 LOC_ALGORITHM: 3 (version number of) MOST_LIKELY: 84% GRB 2nd_MOST_LIKELY: 11% GRO_J0422_32 DETECTORS: 0,0,0, 0,0,0, 0,1,1, 0,0,1, 0,0, SUN_POSTN: 170.58d {+11h 22m 18s} +4.06d {+04d 03' 34"} SUN_DIST: 106.41 [deg] Sun_angle= 7.2 [hr] (West of Sun) MOON_POSTN: 254.28d {+16h 57m 06s} -19.54d {-19d 32' 15"} MOON_DIST: 165.92 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 182.03,-28.64 [deg] galactic lon,lat of the burst (or transient) ECL_COORDS: 62.86,-10.40 [deg] ecliptic lon,lat of the burst (or transient) COMMENTS: Fermi-GBM Flight-calculated Coordinates. COMMENTS: This trigger occurred at longitude,latitude = 193.10,-9.83 [deg].
TITLE: GCN/FERMI NOTICE NOTICE_DATE: Thu 12 Sep 13 08:35:35 UT NOTICE_TYPE: Fermi-GBM Ground Position RECORD_NUM: 58 TRIGGER_NUM: 400667700 GRB_RA: 58.730d {+03h 54m 55s} (J2000), 58.918d {+03h 55m 40s} (current), 58.044d {+03h 52m 11s} (1950) GRB_DEC: +10.830d {+10d 49' 48"} (J2000), +10.869d {+10d 52' 10"} (current), +10.684d {+10d 41' 03"} (1950) GRB_ERROR: 7.21 [deg radius, statistical only] DATA_SIGNIF: 26.00 [sigma] DATA_INTERVAL: 0.064 [sec] GRB_DATE: 16547 TJD; 255 DOY; 13/09/12 GRB_TIME: 30898.00 SOD {08:34:58.00} UT GRB_PHI: 235.00 [deg] GRB_THETA: 112.00 [deg] E_RANGE: 44.032 - 279.965 [keV] LOC_ALGORITHM: 4143 (Gnd S/W Version number) SUN_POSTN: 170.58d {+11h 22m 18s} +4.06d {+04d 03' 34"} SUN_DIST: 110.38 [deg] Sun_angle= 7.4 [hr] (West of Sun) MOON_POSTN: 254.28d {+16h 57m 07s} -19.54d {-19d 32' 15"} MOON_DIST: 162.85 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 178.73,-31.53 [deg] galactic lon,lat of the burst (or transient) ECL_COORDS: 58.89, -9.30 [deg] ecliptic lon,lat of the burst (or transient) COMMENTS: Fermi-GBM Ground-calculated Coordinates. COMMENTS: Bright hard burst in the GBM. COMMENTS: This Notice was ground-generated -- not flight-generated.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:47:12 UT NOTICE_TYPE: Swift-XRT Nack-Position TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.601d {+03h 10m 24s} (J2000) POINT_DEC: +13.965d {+13d 57' 53"} (J2000) IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 30991.70 SOD {08:36:31.70} UT, 93.9 [sec] since BAT Trigger Time COUNTS: 3 Min_needed= 20 STD_DEV: 0.00 Max_StdDev_for_Good=28.44 [arcsec] PH2_ITER: 1 Max_iter_allowed= 4 ERROR_CODE: 1 COMMENTS: SWIFT-XRT Nack Position. COMMENTS: No source found in the image.

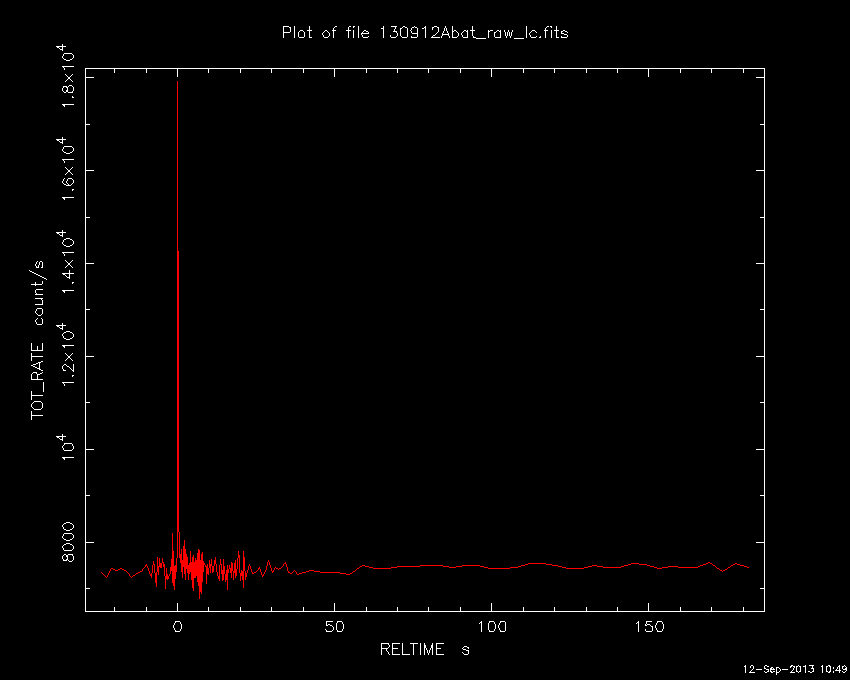

TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:48:19 UT NOTICE_TYPE: Swift-BAT GRB Lightcurve TRIGGER_NUM: 570465, Seg_Num: 0 GRB_RA: 47.615d {+03h 10m 28s} (J2000), 47.804d {+03h 11m 13s} (current), 46.924d {+03h 07m 42s} (1950) GRB_DEC: +13.974d {+13d 58' 28"} (J2000), +14.026d {+14d 01' 33"} (current), +13.785d {+13d 47' 08"} (1950) GRB_DATE: 16547 TJD; 255 DOY; 13/09/12 GRB_TIME: 30897.93 SOD {08:34:57.93} UT TRIGGER_INDEX: 10427 GRB_PHI: -21.94 [deg] GRB_THETA: 47.69 [deg] DELTA_TIME: -14.00 [sec] TRIGGER_DUR: 0.064 [sec] SOLN_STATUS: 0x3 RATE_SIGNIF: 46.23 [sigma] IMAGE_SIGNIF: 7.18 [sigma] LC_URL: sw00570465000msb.lc SUN_POSTN: 170.58d {+11h 22m 20s} +4.06d {+04d 03' 22"} SUN_DIST: 120.45 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.41d {+16h 57m 39s} -19.54d {-19d 32' 30"} MOON_DIST: 153.97 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.83 [deg] galactic lon,lat of the burst (or transient) ECL_COORDS: 49.04, -3.64 [deg] ecliptic lon,lat of the burst (or transient) COMMENTS: SWIFT-BAT GRB Lightcurve. COMMENTS: COMMENTS: The next comments were copied from the BAT_POS Notice: COMMENTS: This is a rate trigger. COMMENTS: A point_source was found. COMMENTS: This does not match any source in the on-board catalog. COMMENTS: This does not match any source in the ground catalog. COMMENTS: This is a GRB. COMMENTS: This trigger occurred at longitude,latitude = 265.41,14.58 [deg].

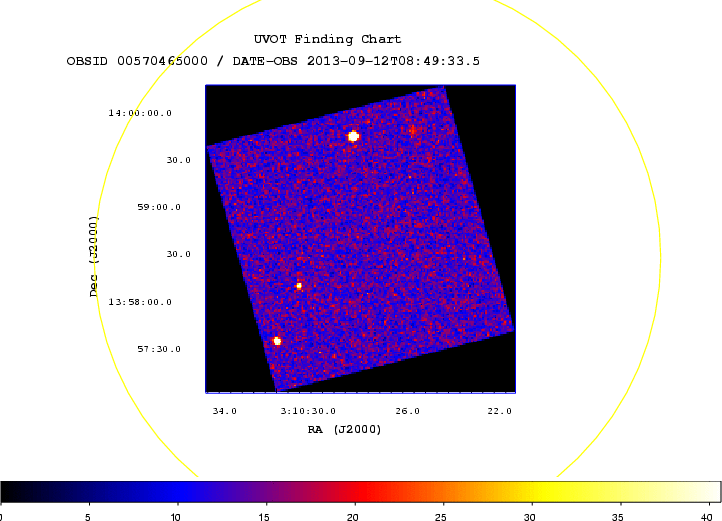

TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:49:02 UT NOTICE_TYPE: Swift-UVOT Source List TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.601d {+03h 10m 24s} (J2000) POINT_DEC: +13.965d {+13d 57' 53"} (J2000) POINT_ROLL: 76.598d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 30996.73 SOD {08:36:36.73} UT, 99.0 [sec] since BAT Trigger Time FILTER: 10, White BKG_MEAN: 3.017 N_STARS: 20 X_OFFSET: 565 [pixels] Y_OFFSET: 467 [pixels] X_MAX: 1524 [pixels] Y_MAX: 1426 [pixels] DET_THRESH: 14 PHOTO_THRESH: 8 SL_URL: sw00570465000msufc0098.fits SUN_POSTN: 170.58d {+11h 22m 20s} +4.06d {+04d 03' 21"} SUN_DIST: 120.47 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.42d {+16h 57m 40s} -19.54d {-19d 32' 31"} MOON_DIST: 153.95 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Source List.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:49:29 UT NOTICE_TYPE: Swift-UVOT Processed Source List TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.601d {+03h 10m 24s} (J2000) POINT_DEC: +13.965d {+13d 57' 53"} (J2000) POINT_ROLL: 76.598d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 30996.73 SOD {08:36:36.73} UT, 99.0 [sec] since BAT Trigger Time FILTER: 10, White BKG_MEAN: 3.017 N_STARS: 20 X_OFFSET: 565 [pixels] Y_OFFSET: 467 [pixels] X_MAX: 1524 [pixels] Y_MAX: 1426 [pixels] DET_THRESH: 14 PHOTO_THRESH: 8 SL_URL: sw00570465000msufc0098.fits SUN_POSTN: 170.59d {+11h 22m 20s} +4.06d {+04d 03' 21"} SUN_DIST: 120.47 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.42d {+16h 57m 42s} -19.54d {-19d 32' 32"} MOON_DIST: 153.94 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Source List. COMMENTS: All 4 attachments are included.

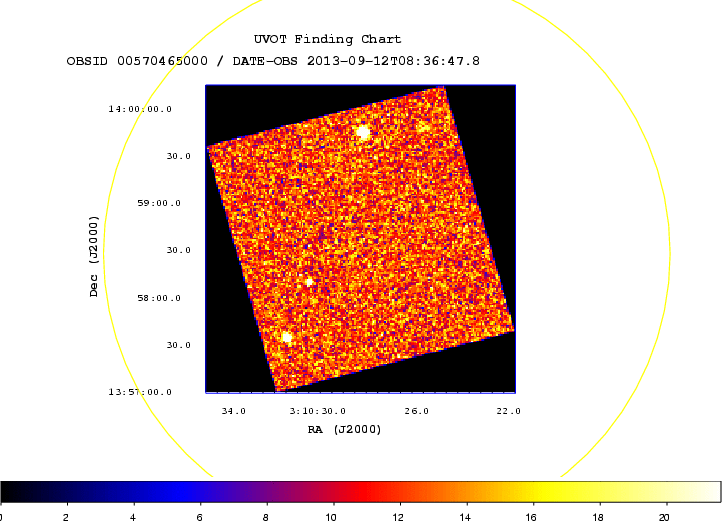

TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:51:09 UT NOTICE_TYPE: Swift-UVOT Image TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.601d {+03h 10m 24s} (J2000) POINT_DEC: +13.965d {+13d 57' 53"} (J2000) ROLL: 76.598d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 30996.73 SOD {08:36:36.73} UT, 99.0 [sec] since BAT Trigger Time FILTER: 10, White EXPOSURE_ID: 400667807 X_OFFSET: 884 [pixels] Y_OFFSET: 786 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1044 Y_GRB_POS: 946 BINNING_INDEX: 1 IM_URL: sw00570465000msuni0110.fits SUN_POSTN: 170.59d {+11h 22m 21s} +4.06d {+04d 03' 19"} SUN_DIST: 120.47 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.44d {+16h 57m 46s} -19.54d {-19d 32' 34"} MOON_DIST: 153.92 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Image. COMMENTS: The GRB Position came from the Window Position in the Mode Command. COMMENTS: The image has 2x2 binning (compression).
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:51:27 UT NOTICE_TYPE: Swift-UVOT Processed Image TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.601d {+03h 10m 24s} (J2000) POINT_DEC: +13.965d {+13d 57' 53"} (J2000) ROLL: 76.598d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 30996.73 SOD {08:36:36.73} UT, 99.0 [sec] since BAT Trigger Time FILTER: 10, White EXPOSURE_ID: 400667807 X_OFFSET: 884 [pixels] Y_OFFSET: 786 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1044 Y_GRB_POS: 946 BINNING_INDEX: 1 IM_URL: sw00570465000msuni0110.fits SUN_POSTN: 170.59d {+11h 22m 21s} +4.06d {+04d 03' 19"} SUN_DIST: 120.47 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.44d {+16h 57m 46s} -19.54d {-19d 32' 34"} MOON_DIST: 153.92 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Image. COMMENTS: The GRB Position came from the Window Position in the Mode Command. COMMENTS: The image has 2x2 binning (compression). COMMENTS: All 4 attachments are included.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:51:34 UT NOTICE_TYPE: Swift-XRT Position TRIGGER_NUM: 570465, Seg_Num: 0 GRB_RA: 47.5906d {+03h 10m 21.74s} (J2000), 47.7802d {+03h 11m 07.24s} (current), 46.8995d {+03h 07m 35.87s} (1950) GRB_DEC: +13.9954d {+13d 59' 43.4"} (J2000), +14.0467d {+14d 02' 48.2"} (current), +13.8064d {+13d 48' 23.0"} (1950) GRB_ERROR: 3.9 [arcsec radius, statistical plus systematic, 90% containment] GRB_INTEN: 1.00e-10 [erg/cm2/sec] GRB_SIGNIF: 10.00 [sigma] IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 31010.00 SOD {08:36:50.00} UT, 112.2 [sec] since BAT Trigger Time TAM[0-3]: 100.00 100.00 100.00 100.00 AMPLIFIER: 1 WAVEFORM: 31 SUN_POSTN: 170.59d {+11h 22m 21s} +4.06d {+04d 03' 19"} SUN_DIST: 120.47 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.44d {+16h 57m 47s} -19.54d {-19d 32' 34"} MOON_DIST: 153.92 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.61,-36.83 [deg] galactic lon,lat of the burst ECL_COORDS: 49.03, -3.62 [deg] ecliptic lon,lat of the burst COMMENTS: SWIFT-XRT Coordinates. COMMENTS: This Notice was ground-generated -- not flight-generated. COMMENTS: TAM values, flux and significance fields are not valid. COMMENTS: This position was automatically generated on the ground using COMMENTS: Photon Counting data telemetered via TDRSS (SPER data). COMMENTS: See http://www.swift.ac.uk/sper/docs.php for details. COMMENTS: The probability that this is a serendipitous source in the COMMENTS: SPER window is 0.58% < P(seren) < 1.1%.

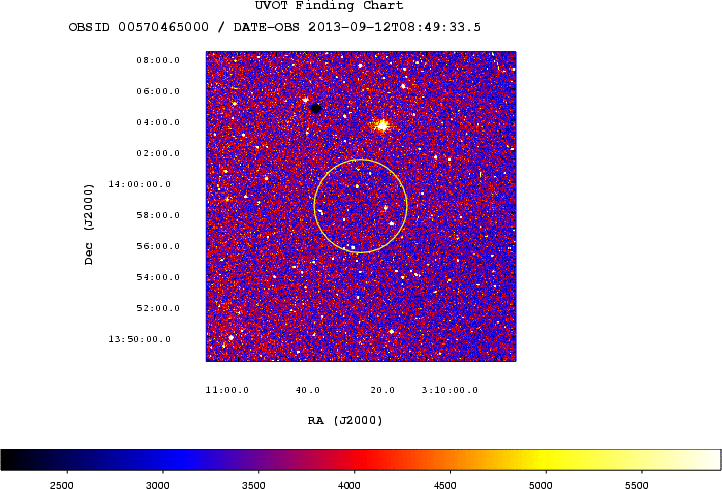

TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:58:36 UT NOTICE_TYPE: Swift-UVOT Source List TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.599d {+03h 10m 24s} (J2000) POINT_DEC: +13.966d {+13d 57' 57"} (J2000) POINT_ROLL: 76.596d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 31762.44 SOD {08:49:22.44} UT, 864.7 [sec] since BAT Trigger Time FILTER: 10, White BKG_MEAN: 3.269 N_STARS: 91 X_OFFSET: 325 [pixels] Y_OFFSET: 227 [pixels] X_MAX: 1764 [pixels] Y_MAX: 1666 [pixels] DET_THRESH: 15 PHOTO_THRESH: 8 SL_URL: sw00570465000msufc0864.fits SUN_POSTN: 170.59d {+11h 22m 22s} +4.05d {+04d 03' 12"} SUN_DIST: 120.48 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.52d {+16h 58m 04s} -19.55d {-19d 32' 42"} MOON_DIST: 153.85 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Source List.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 08:59:20 UT NOTICE_TYPE: Swift-UVOT Processed Source List TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.599d {+03h 10m 24s} (J2000) POINT_DEC: +13.966d {+13d 57' 57"} (J2000) POINT_ROLL: 76.596d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 31762.44 SOD {08:49:22.44} UT, 864.7 [sec] since BAT Trigger Time FILTER: 10, White BKG_MEAN: 3.269 N_STARS: 91 X_OFFSET: 325 [pixels] Y_OFFSET: 227 [pixels] X_MAX: 1764 [pixels] Y_MAX: 1666 [pixels] DET_THRESH: 15 PHOTO_THRESH: 8 SL_URL: sw00570465000msufc0864.fits SUN_POSTN: 170.59d {+11h 22m 22s} +4.05d {+04d 03' 11"} SUN_DIST: 120.48 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.52d {+16h 58m 06s} -19.55d {-19d 32' 43"} MOON_DIST: 153.84 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Source List. COMMENTS: All 4 attachments are included.
RA(J2000) = 03h 10m 28s Dec(J2000) = +13d 58' 28"with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve showed a short spike with substructure with a duration of about 0.5 sec. The peak count rate was ~11000 counts/sec (15-350 keV), at ~0 sec after the trigger.
RA(J2000) = 03h 10m 21.74s Dec(J2000) = +13d 59' 43.7"with an uncertainty of 3.8 arcseconds (radius, 90% containment). This location is 115 arcseconds from the BAT onboard position, within the BAT error circle. This position may be improved as more data are received; the latest position is available at http://www.swift.ac.uk/sper.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 09:01:02 UT NOTICE_TYPE: Swift-UVOT Image TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.599d {+03h 10m 24s} (J2000) POINT_DEC: +13.966d {+13d 57' 57"} (J2000) ROLL: 76.596d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 31762.44 SOD {08:49:22.44} UT, 864.7 [sec] since BAT Trigger Time FILTER: 10, White EXPOSURE_ID: 400668573 X_OFFSET: 884 [pixels] Y_OFFSET: 786 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1044 Y_GRB_POS: 946 BINNING_INDEX: 1 IM_URL: sw00570465000msuni0876.fits SUN_POSTN: 170.59d {+11h 22m 22s} +4.05d {+04d 03' 10"} SUN_DIST: 120.48 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.54d {+16h 58m 10s} -19.55d {-19d 32' 45"} MOON_DIST: 153.83 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Image. COMMENTS: The GRB Position came from the Window Position in the Mode Command. COMMENTS: The image has 2x2 binning (compression).
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 09:00:30 UT NOTICE_TYPE: Swift-XRT Position UPDATE TRIGGER_NUM: 570465, Seg_Num: 0 GRB_RA: 47.5923d {+03h 10m 22.15s} (J2000), 47.7819d {+03h 11m 07.65s} (current), 46.9012d {+03h 07m 36.28s} (1950) GRB_DEC: +13.9964d {+13d 59' 47.0"} (J2000), +14.0477d {+14d 02' 51.8"} (current), +13.8074d {+13d 48' 26.6"} (1950) GRB_ERROR: 2.2 [arcsec radius, statistical plus systematic, 90% containment] GRB_INTEN: 1.00e-10 [erg/cm2/sec] GRB_SIGNIF: 10.00 [sigma] IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 31010.00 SOD {08:36:50.00} UT, 112.2 [sec] since BAT Trigger Time TAM[0-3]: 100.00 100.00 100.00 100.00 AMPLIFIER: 1 WAVEFORM: 31 SUN_POSTN: 170.59d {+11h 22m 22s} +4.05d {+04d 03' 10"} SUN_DIST: 120.48 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.54d {+16h 58m 09s} -19.55d {-19d 32' 45"} MOON_DIST: 153.83 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.61,-36.83 [deg] galactic lon,lat of the burst ECL_COORDS: 49.03, -3.62 [deg] ecliptic lon,lat of the burst COMMENTS: SWIFT-XRT Coordinates. COMMENTS: This Notice was ground-generated -- not flight-generated. COMMENTS: This is an Update Notice -- the RA,Dec values herein supersede the previous XRT_POS Notice. COMMENTS: TAM values, flux and significance fields are not valid. COMMENTS: This position was automatically generated on the ground using COMMENTS: Photon Counting data telemetered via TDRSS (SPER data). COMMENTS: See http://www.swift.ac.uk/sper/docs.php for details. COMMENTS: This position was enhanced using UVOT field astrometry. COMMENTS: The probability that this is a serendipitous source in the COMMENTS: SPER window is 0.58% < P(seren) < 1.1%.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Thu 12 Sep 13 09:01:23 UT NOTICE_TYPE: Swift-UVOT Processed Image TRIGGER_NUM: 570465, Seg_Num: 0 POINT_RA: 47.599d {+03h 10m 24s} (J2000) POINT_DEC: +13.966d {+13d 57' 57"} (J2000) ROLL: 76.596d IMG_START_DATE: 16547 TJD; 255 DOY; 13/09/12 IMG_START_TIME: 31762.44 SOD {08:49:22.44} UT, 864.7 [sec] since BAT Trigger Time FILTER: 10, White EXPOSURE_ID: 400668573 X_OFFSET: 884 [pixels] Y_OFFSET: 786 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1044 Y_GRB_POS: 946 BINNING_INDEX: 1 IM_URL: sw00570465000msuni0876.fits SUN_POSTN: 170.59d {+11h 22m 22s} +4.05d {+04d 03' 09"} SUN_DIST: 120.48 [deg] Sun_angle= 8.2 [hr] (West of Sun) MOON_POSTN: 254.55d {+16h 58m 11s} -19.55d {-19d 32' 46"} MOON_DIST: 153.82 [deg] MOON_ILLUM: 46 [%] GAL_COORDS: 166.65,-36.85 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 49.03, -3.65 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Image. COMMENTS: The GRB Position came from the Window Position in the Mode Command. COMMENTS: The image has 2x2 binning (compression). COMMENTS: All 4 attachments are included.
RA (J2000) = 03:10:22.23 Dec. (J2000) = 13:59:48.7with an error of 0".3 arcseconds.
RA(J2000) = 03h 10m 25.6s Dec(J2000) = +13d 59' 55.7"with an uncertainty of 1.6 arcmin, (radius, sys+stat, 90% containment). The partial coding was 31%.
RA (J2000): 03h 10m 22.24s Dec (J2000): +13d 59' 49.3"with an uncertainty of 1.6 arcsec (radius, 90% confidence).
================================== tmid scope expos fil limit ================================== 21m DSO-14 2x160s I >18.7 24m DSO-14 2x160s R >19.6 61m Prompt5 10x160s I >20.6 61m Prompt4 10x160s R >21.0 61m Prompt1 10x160s V >21.3 61m Prompt3 10x160s B >21.1 63m Y-41 11x160s i' >21.6 60m Y-41 9x160s r' >21.9 66m Y-41 8x160s g' >21.8 ==================================BVRI magnitudes are in the Vega System, and g'r'i' magnitudes are in the AB system, calibrated to 4 APASS stars in the field. Magnitudes have not been corrected for line-of-sight Milky Way dust extinction, with expected E(B-V)=0.28 (Schlegel et al. 1998).
A summary of the PC-mode spectrum is thus: Total column: 1.29 (+0.67, -0.05) x 10^21 cm^-2 Galactic foreground: 1.2 x 10^21 cm^-2 Excess significance: <1.6 sigma Photon index: 1.49 (+0.20, -0.12)If the light curve continues to decay with a power-law decay index of 1.24, the count rate at T+24 hours will be 1.6 x 10^-3 count s^-1, corresponding to an observed (unabsorbed) 0.3-10 keV flux of 8.0 x 10^-14 (9.2 x 10^-14) erg cm^-2 s^-1.
r > 23.89 i > 23.79 Z > 22.86 Y > 22.38 J > 22.30 H > 21.78These magnitudes are in the AB system and are not corrected for Galactic extinction in the direction of the GRB. Our observations confirm that the source faded and is therefore the short GRB afterglow.
Filter T_start(s) T_stop(s) Exp(s) Mag white_FC 99 249 147 >20.7 u_FC 311 561 246 >20.2 white 99 6848 785 >21.4 v 640 23984 1395 >20.3 b 566 30470 1907 >21.6 u 311 36236 3907 >21.6 w1 690 35508 3836 >22.1 m2 1070 34601 2827 >21.8 w2 616 23070 1376 >21.6The magnitudes in the table are not corrected for the Galactic extinction due to the reddening of E(B-V) = 0.28 in the direction of the burst (Schlegel et al. 1998).
t_start, UT filter exptime,s t-t0, mid, days OT uplim 21:39:21 None 31*120 0.68394 n/d 22.3The photometry is based 3 USNO-B1.0 stars:
USNO-B1.0 id RA Dec R2 1040-0030312 03:10:30.46 +14:01:11.1 19.44 1040-0030310 03:10:29.14 +14:01:21.6 17.38 1040-0030302 03:10:25.12 +14:00:31.6 15.90
