Gamma-ray Burst 090113

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/FERMI NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:41:01 UT
NOTICE_TYPE:     Fermi-GBM Flight Position
RECORD_NUM:      45
TRIGGER_NUM:     253564842
GRB_RA:           31.167d {+02h 04m 40s} (J2000),
                  31.301d {+02h 05m 12s} (current),
                  30.426d {+02h 01m 42s} (1950)
GRB_DEC:         +35.117d {+35d 06' 60"} (J2000),
                 +35.160d {+35d 09' 35"} (current),
                 +34.877d {+34d 52' 39"} (1950)
GRB_ERROR:       8.15 [deg radius, statistical plus systematic]
GRB_INTEN:       322 [cnts/sec]
DATA_SIGNIF:     12.20 [sigma]
INTEG_TIME:      0.512 [sec]
GRB_DATE:        14844 TJD;    13 DOY;   09/01/13
GRB_TIME:        67240.84 SOD {18:40:40.84} UT
GRB_PHI:          60.00 [deg]
GRB_THETA:        30.00 [deg]
DATA_TIME_SCALE: 0.5120 [sec]
HARD_RATIO:      0.62
LOC_ALGORITHM:   3 (version number of)
MOST_LIKELY:      73%  GRB
2nd_MOST_LIKELY:  18%  GRO_J0422_32
DETECTORS:       1,1,0, 0,0,0, 0,0,0, 0,0,0, 0,0,
SUN_POSTN:       295.59d {+19h 42m 21s}  -21.36d {-21d 21' 18"}
SUN_DIST:        106.59 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.46d {+10h 05m 49s}   +9.80d {+09d 47' 49"}
MOON_DIST:       107.86 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      139.46,-25.39 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:       41.41, 21.06 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        Fermi-GBM Flight-calculated Coordinates.
COMMENTS:        This trigger occurred at longitude,latitude = 17.62,24.92 [deg].

GCN NOTICE

TITLE:           GCN/FERMI NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:41:34 UT
NOTICE_TYPE:     Fermi-GBM Ground Position
RECORD_NUM:      56
TRIGGER_NUM:     253564842
GRB_RA:           27.880d {+01h 51m 31s} (J2000),
                  28.008d {+01h 52m 02s} (current),
                  27.176d {+01h 48m 42s} (1950)
GRB_DEC:         +26.500d {+26d 30' 00"} (J2000),
                 +26.544d {+26d 32' 40"} (current),
                 +26.253d {+26d 15' 11"} (1950)
GRB_ERROR:       5.57 [deg radius, statistical only]
DATA_SIGNIF:     13.20 [sigma]
DATA_INTERVAL:   0.512 [sec]
GRB_DATE:        14844 TJD;    13 DOY;   09/01/13
GRB_TIME:        67240.84 SOD {18:40:40.84} UT
GRB_PHI:          62.00 [deg]
GRB_THETA:        39.00 [deg]
E_RANGE:         44.032 - 279.965 [keV]
LOC_ALGORITHM:   1 (Gnd S/W Version number)
SUN_POSTN:       295.59d {+19h 42m 21s}  -21.36d {-21d 21' 18"}
SUN_DIST:        101.41 [deg]   Sun_angle= -6.2 [hr] (East of Sun)
MOON_POSTN:      151.46d {+10h 05m 51s}   +9.79d {+09d 47' 40"}
MOON_DIST:       114.20 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      139.27,-34.46 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:       35.36, 14.06 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        Fermi-GBM Ground-calculated Coordinates.
COMMENTS:        This Notice was ground-generated -- not flight-generated.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:48:57 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     339852,   Seg_Num: 0
GRB_RA:           32.073d {+02h 08m 18s} (J2000),
                  32.207d {+02h 08m 50s} (current),
                  31.337d {+02h 05m 21s} (1950)
GRB_DEC:         +33.456d {+33d 27' 23"} (J2000),
                 +33.499d {+33d 29' 56"} (current),
                 +33.220d {+33d 13' 10"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       650 [cnts]    Image_Peak=68 [image_cnts]
TRIGGER_DUR:     0.128 [sec]
TRIGGER_INDEX:   122     E_range: 25-100 keV
BKG_INTEN:       28672 [cnts]
BKG_TIME:        67227.58 SOD {18:40:27.58} UT
BKG_DUR:         8 [sec]
GRB_DATE:        14844 TJD;    13 DOY;   09/01/13
GRB_TIME:        67239.17 SOD {18:40:39.17} UT
GRB_PHI:         -10.37 [deg]
GRB_THETA:        30.72 [deg]
SOLN_STATUS:     0x3
RATE_SIGNIF:     8.83 [sigma]
IMAGE_SIGNIF:    7.58 [sigma]
MERIT_PARAMS:     +1  +0  +0  +0  +2 +14  +0  +0 +28  +0
SUN_POSTN:       295.59d {+19h 42m 23s}  -21.35d {-21d 21' 15"}
SUN_DIST:        106.88 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.53d {+10h 06m 07s}   +9.76d {+09d 45' 47"}
MOON_DIST:       107.99 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.84,-26.73 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS:        probably due to it occurring during a Malindi downlink session.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 17.11,-15.67 [deg].

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:49:46 UT
NOTICE_TYPE:     Swift-XRT Image
TRIGGER_NUM:     339852,   Seg_Num: 0
GRB_RA:           32.1633d {+02h 08m 39.1s} (J2000),
                  32.2968d {+02h 09m 11.2s} (current),
                  31.4263d {+02h 05m 42.3s} (1950)
GRB_DEC:         +33.4537d {+33d 27' 13.3"} (J2000),
                 +33.4963d {+33d 29' 46.5"} (current),
                 +33.2171d {+33d 13' 01.4"} (1950)
GRB_ERROR:       5.8 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       31 [cnts]
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67310.08 SOD {18:41:50.08} UT,   70.9 [sec] since BAT Trigger Time
CENTROID_X:      421.42,  raw= 421  [pixels]
CENTROID_Y:      322.63,  raw= 323  [pixels]
ROLL:            255.13 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   58.07
GRB_POS_XRT_Z:   280.81
IMAGE_URL:       sw00339852000msxps_rw.img
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 14"}
SUN_DIST:        106.95 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.54d {+10h 06m 09s}   +9.76d {+09d 45' 34"}
MOON_DIST:       107.93 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.92,-26.71 [deg] galactic lon,lat of the burst
ECL_COORDS:       41.59, 19.21 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Image.
COMMENTS:        WARNING: The centroided position is more than 100 rows or columns from the center of the FOV.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:49:54 UT
NOTICE_TYPE:     Swift-XRT Processed Image
TRIGGER_NUM:     339852,   Seg_Num: 0
GRB_RA:           32.1633d {+02h 08m 39.1s} (J2000),
                  32.2968d {+02h 09m 11.2s} (current),
                  31.4263d {+02h 05m 42.3s} (1950)
GRB_DEC:         +33.4537d {+33d 27' 13.3"} (J2000),
                 +33.4963d {+33d 29' 46.5"} (current),
                 +33.2171d {+33d 13' 01.4"} (1950)
GRB_ERROR:       5.8 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       31 [cnts]
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67310.08 SOD {18:41:50.08} UT,   70.9 [sec] since BAT Trigger Time
CENTROID_X:      421.42,  raw= 421  [pixels]
CENTROID_Y:      322.63,  raw= 323  [pixels]
ROLL:            255.13 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   58.07
GRB_POS_XRT_Z:   280.81
IMAGE_URL:       sw00339852000msxps_rw.img
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 14"}
SUN_DIST:        106.95 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.54d {+10h 06m 09s}   +9.76d {+09d 45' 32"}
MOON_DIST:       107.93 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.92,-26.71 [deg] galactic lon,lat of the burst
ECL_COORDS:       41.59, 19.21 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Processed Image.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:49:36 UT
NOTICE_TYPE:     Swift-XRT Position
TRIGGER_NUM:     339852,   Seg_Num: 0
GRB_RA:           32.1633d {+02h 08m 39.19s} (J2000),
                  32.2968d {+02h 09m 11.23s} (current),
                  31.4263d {+02h 05m 42.31s} (1950)
GRB_DEC:         +33.4537d {+33d 27' 13.3"} (J2000),
                 +33.4963d {+33d 29' 46.5"} (current),
                 +33.2171d {+33d 13' 01.4"} (1950)
GRB_ERROR:       5.8 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       8.13e-10 [erg/cm2/sec]
GRB_SIGNIF:      5.56 [sigma]
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67310.08 SOD {18:41:50.08} UT,   70.9 [sec] since BAT Trigger Time
TAM[0-3]:        327.69 237.27 261.56 243.61
AMPLIFIER:       2
WAVEFORM:        134
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 14"}
SUN_DIST:        106.95 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.53d {+10h 06m 08s}   +9.76d {+09d 45' 37"}
MOON_DIST:       107.93 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.92,-26.71 [deg] galactic lon,lat of the burst
ECL_COORDS:       41.59, 19.21 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        The XRT position is 4.51 arcmin from the BAT position.
COMMENTS:        WARNING: The centroided position is more than 100 rows or columns from the center of the FOV.

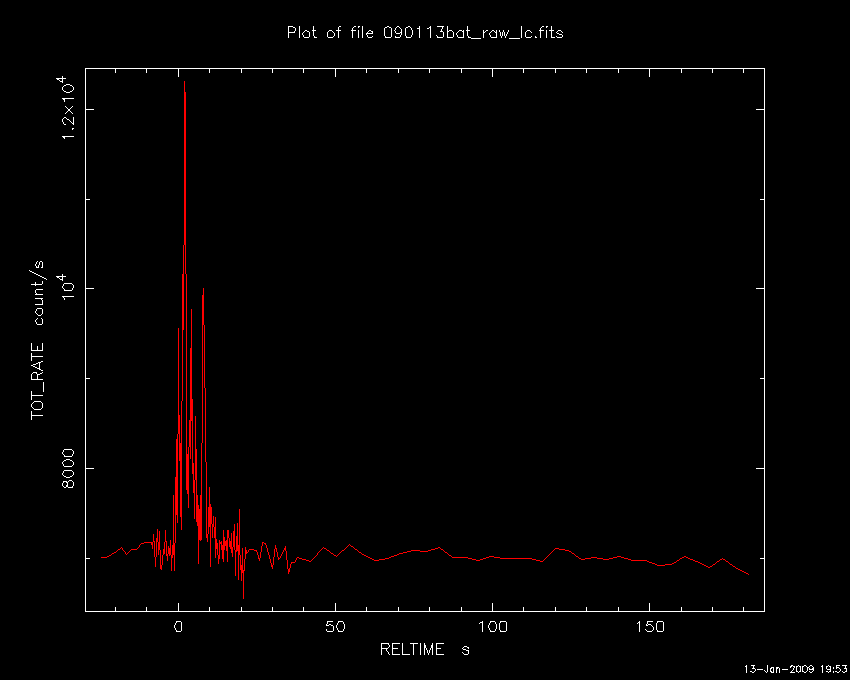

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:50:18 UT
NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     339852,   Seg_Num: 0
GRB_RA:           32.073d {+02h 08m 18s} (J2000),
                  32.207d {+02h 08m 50s} (current),
                  31.337d {+02h 05m 21s} (1950)
GRB_DEC:         +33.456d {+33d 27' 23"} (J2000),
                 +33.499d {+33d 29' 56"} (current),
                 +33.220d {+33d 13' 10"} (1950)
GRB_DATE:        14844 TJD;    13 DOY;   09/01/13
GRB_TIME:        67239.17 SOD {18:40:39.17} UT
TRIGGER_INDEX:   122
GRB_PHI:         -10.37 [deg]
GRB_THETA:        30.72 [deg]
DELTA_TIME:      -37.00 [sec]
TRIGGER_DUR:     0.128 [sec]
SOLN_STATUS:     0x3
RATE_SIGNIF:     8.83 [sigma]
IMAGE_SIGNIF:    7.58 [sigma]
LC_URL:          sw00339852000msb.lc
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 14"}
SUN_DIST:        106.88 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.54d {+10h 06m 10s}   +9.76d {+09d 45' 26"}
MOON_DIST:       108.00 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.84,-26.73 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 17.11,-15.67 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:51:13 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.068d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.450d {+33d 26' 59"} (J2000)
POINT_ROLL:      255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67318.50 SOD {18:41:58.50} UT,   79.3 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.833
N_STARS:         45
X_OFFSET:        464 [pixels]
Y_OFFSET:        624 [pixels]
X_MAX:           1423 [pixels]
Y_MAX:           1583 [pixels]
DET_THRESH:      14
PHOTO_THRESH:    7
SL_URL:          sw00339852000msufc0079.fits
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 14"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.55d {+10h 06m 12s}   +9.75d {+09d 45' 12"}
MOON_DIST:       108.02 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:51:15 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.068d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.450d {+33d 26' 59"} (J2000)
POINT_ROLL:      255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67318.50 SOD {18:41:58.50} UT,   79.3 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.833
N_STARS:         45
X_OFFSET:        464 [pixels]
Y_OFFSET:        624 [pixels]
X_MAX:           1423 [pixels]
Y_MAX:           1583 [pixels]
DET_THRESH:      14
PHOTO_THRESH:    7
SL_URL:          sw00339852000msufc0079.fits
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 14"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.55d {+10h 06m 12s}   +9.75d {+09d 45' 11"}
MOON_DIST:       108.02 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:51:34 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.068d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.450d {+33d 26' 59"} (J2000)
ROLL:            255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67318.50 SOD {18:41:58.50} UT,   79.3 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     253564922
X_OFFSET:        253 [pixels]
Y_OFFSET:        1056 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       413
Y_GRB_POS:       1216
BINNING_INDEX:   1
IM_URL:          sw00339852000msuni0079.fits
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 13"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.55d {+10h 06m 13s}   +9.75d {+09d 45' 06"}
MOON_DIST:       108.02 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:51:59 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.068d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.450d {+33d 26' 59"} (J2000)
ROLL:            255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67318.50 SOD {18:41:58.50} UT,   79.3 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     253564922
X_OFFSET:        253 [pixels]
Y_OFFSET:        1056 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       413
Y_GRB_POS:       1216
BINNING_INDEX:   1
IM_URL:          sw00339852000msuni0079.fits
SUN_POSTN:       295.60d {+19h 42m 23s}  -21.35d {-21d 21' 13"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.56d {+10h 06m 14s}   +9.75d {+09d 44' 60"}
MOON_DIST:       108.03 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        If you have elected to receive attachments:
COMMENTS:        The uvot_sources_image.fits.gz file does not exist; skipping the attachment.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:54:51 UT
NOTICE_TYPE:     Swift-XRT Position RETRACTION
TRIGGER_NUM:     339852,   Seg_Num: 0
GRB_RA:           32.1632d {+02h 08m 39.16s} (J2000),
                  32.2967d {+02h 09m 11.21s} (current),
                  31.4262d {+02h 05m 42.28s} (1950)
GRB_DEC:         +33.4536d {+33d 27' 12.9"} (J2000),
                 +33.4962d {+33d 29' 46.1"} (current),
                 +33.2170d {+33d 13' 01.0"} (1950)
GRB_ERROR:       5.8 [arcsec radius, statistical plus systematic, 90%
+containment]
GRB_INTEN:       8.13e-10 [erg/cm2/sec]
GRB_SIGNIF:      5.59 [sigma]
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67310.08 SOD {18:41:50.08} UT,   70.9 [sec] since BAT Trigger Time
TAM[0-3]:        327.61 237.19 261.35 242.66
AMPLIFIER:       2
WAVEFORM:        134
SUN_POSTN:       295.60d {+19h 42m 24s}  -21.35d {-21d 21' 12"}
SUN_DIST:        106.95 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.58d {+10h 06m 20s}   +9.74d {+09d 44' 16"}
MOON_DIST:       107.98 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.92,-26.71 [deg] galactic lon,lat of the burst
ECL_COORDS:       41.59, 19.21 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        This is a RETRACTION of a previous notice that identified this as a burst afterglow -- it is NOT a GRB.
COMMENTS:        This Notice was ground-generated -- not flight-generated.
COMMENTS:        Centroid is on hot column, but is a real GRB

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:55:16 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.069d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.448d {+33d 26' 52"} (J2000)
POINT_ROLL:      255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67530.43 SOD {18:45:30.43} UT,   291.3 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.775
N_STARS:         37
X_OFFSET:        0 [pixels]
Y_OFFSET:        736 [pixels]
X_MAX:           959 [pixels]
Y_MAX:           1695 [pixels]
DET_THRESH:      8
PHOTO_THRESH:    3
SL_URL:          sw00339852000msufc0291.fits
SUN_POSTN:       295.60d {+19h 42m 24s}  -21.35d {-21d 21' 12"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.59d {+10h 06m 21s}   +9.74d {+09d 44' 09"}
MOON_DIST:       108.06 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:55:43 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.069d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.448d {+33d 26' 52"} (J2000)
POINT_ROLL:      255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67530.43 SOD {18:45:30.43} UT,   291.3 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.775
N_STARS:         37
X_OFFSET:        0 [pixels]
Y_OFFSET:        736 [pixels]
X_MAX:           959 [pixels]
Y_MAX:           1695 [pixels]
DET_THRESH:      8
PHOTO_THRESH:    3
SL_URL:          sw00339852000msufc0291.fits
SUN_POSTN:       295.60d {+19h 42m 24s}  -21.35d {-21d 21' 12"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.59d {+10h 06m 22s}   +9.73d {+09d 44' 02"}
MOON_DIST:       108.06 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:56:22 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.069d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.448d {+33d 26' 52"} (J2000)
ROLL:            255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67530.43 SOD {18:45:30.43} UT,   291.3 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     253565134
X_OFFSET:        253 [pixels]
Y_OFFSET:        1056 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       413
Y_GRB_POS:       1216
BINNING_INDEX:   1
IM_URL:          sw00339852000msuni0291.fits
SUN_POSTN:       295.60d {+19h 42m 24s}  -21.35d {-21d 21' 11"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.60d {+10h 06m 23s}   +9.73d {+09d 43' 52"}
MOON_DIST:       108.07 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 13 Jan 09 18:56:53 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     339852,   Seg_Num: 0
POINT_RA:         32.069d {+02h 08m 16s} (J2000)
POINT_DEC:       +33.448d {+33d 26' 52"} (J2000)
ROLL:            255.126d
IMG_START_DATE:  14844 TJD;    13 DOY;   09/01/13
IMG_START_TIME:  67530.43 SOD {18:45:30.43} UT,   291.3 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     253565134
X_OFFSET:        253 [pixels]
Y_OFFSET:        1056 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       413
Y_GRB_POS:       1216
BINNING_INDEX:   1
IM_URL:          sw00339852000msuni0291.fits
SUN_POSTN:       295.60d {+19h 42m 24s}  -21.35d {-21d 21' 11"}
SUN_DIST:        106.87 [deg]   Sun_angle= -6.4 [hr] (East of Sun)
MOON_POSTN:      151.60d {+10h 06m 24s}   +9.73d {+09d 43' 44"}
MOON_DIST:       108.07 [deg]
MOON_ILLUM:      90 [%]
GAL_COORDS:      140.83,-26.74 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       41.51, 19.24 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        If you have elected to receive attachments:
COMMENTS:        The uvot_sources_image.fits.gz file does not exist; skipping the attachment.

GCN Circular #8804
H. A. Krimm (CRESST/GSFC/USRA), S. D. Barthelmy (GSFC), A. P. Beardmore (U Leicester), D. N. Burrows (PSU), P. A. Evans (U Leicester), N. Gehrels (NASA/GSFC), S. T. Holland (CRESST/USRA/GSFC), E. A. Hoversten (PSU), J. A. Kennea (PSU), C. B. Markwardt (CRESST/GSFC/UMD), P. T. O'Brien (U Leicester), K. L. Page (U Leicester), A. M. Parsons (GSFC), B. A. Rowlinson (U Leicester), T. Sakamoto (NASA/UMBC), E. Troja (INAF-IASFPA), T. N. Ukwatta (GSFC/GWU), L. Vetere (PSU) and H. Ziaeepour (UCL-MSSL) report on behalf of the Swift Team:
At 18:40:39 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 090113 (trigger=339852). Swift slewed immediately to the burst. The BAT on-board calculated location is RA, Dec 32.073, +33.456 which is
```
   RA(J2000)  =  02h 08m 18s
   Dec(J2000) = +33d 27' 23"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve shows about 4 peaks with a duration of about 20 sec. The peak count rate was ~5000 counts/sec (15-350 keV), at ~2 sec after the trigger.
The XRT began observing the field at 18:41:50.1 UT, 70.9 seconds after the BAT trigger. The onboard source-detection algorithm originally centroided on a hot column. No other source was visible in the initial TDRSS sub-image. We are waiting for the full Malindi dataset to detect and localise the afterglow.
UVOT took a finding chart exposure of 150 seconds with the White filter starting 79 seconds after the BAT trigger. No credible afterglow candidate has been found in the initial data products. The sub-image covers 25% of the BAT error circle. The overlap of the 8'x8' region for the list of sources generated on-board is 100% of the BAT error circle. This source list is usually complete to about 18th magnitude. No correction has been made for the expected extinction corresponding to E(B-V) of 0.08.
This burst was also detected by Fermi-GBM.
This burst is not to be confused with the BAT trigger (339853) about 12 minutes later on the 1A 1118-61 HMXB source.
Burst Advocate for this burst is H. A. Krimm (krimm AT milkyway.gsfc.nasa.gov). Please contact the BA by email if you require additional information regarding Swift followup of this burst. In extremely urgent cases, after trying the Burst Advocate, you can contact the Swift PI by phone (see Swift TOO web site for information: http://www.swift.psu.edu/too.html.)
GCN Circular #8806
J. A. Kennea (PSU) and H. A. Krimm (CRESST/GSFC/USRA) report on behalf of the Swift Team:
Analysis of preliminary data from the BAT trigger 339852 (GRB090213) reveals an uncatalogued point source at RA, Dec = 32.05816, 33.42945 which is equivalent to:
```
RA(J2000) = 02h 08m 13.9s,
Dec(J2000) = +33d 25m 46.0s
```
with an estimated uncertainty of 8 arcseconds radius (90% confidence). Analysis is ongoing and an improved analysis will be reported as soon as possible.
GCN Circular #8807
H. Swan (U Mich), E.S. Rykoff (UCSB), T. Guver (U Arizona), T.A. McKay (U Mich), F. Yuan (U Mich), B. E. Schaefer (Louisiana State), R. Quimby (Caltech), report on behalf of the ROTSE collaboration:
ROTSE-IIId, located at the Turkish National Observatory at Bakirlitepe, Turkey, responded to GRB 090113 (Swift trigger 339852; H. A. Krimm, GCN 8804), producing images beginning 6.4 s after the GCN notice time. An automated response took the first image at 18:49:02.4 UT, 503.2 s after the burst, under windy conditions. We took 10 5-sec, 10 20-sec and 30 60-sec exposures. These unfiltered images are calibrated relative to USNO A2.0 (R). Imaging is on going.
Comparison to the DSS (second epoch) reveals no new sources within the 3-sigma Swift/BAT error circle, for both single images and coadding into sets of 10; the field is not crowded. Individual images have limiting magnitudes ranging from 14.9-16.4; we set the following specific limits.
```
start UT       end UT      t_exp(s)   mlim   t_start-tGRB(s)  Coadd?
--------------------------------------------------------------------
18:49:02.5   18:51:08.2       125     16.6          503.3       Y
18:51:16.6   18:55:52.3       275     17.3          637.4       Y
18:60:45.7   19:05:21.5       275     17.3         1206.5       Y
```
GCN Circular #8808
GRB 090113: Swift-BAT refined analysis
J. Tueller (GSFC), S. D. Barthelmy (GSFC), W. H. Baumgartner (GSFC/UMBC), J. R. Cummings (GSFC/UMBC), E. E. Fenimore (LANL), N. Gehrels (GSFC), H. A. Krimm (GSFC/USRA), C. B. Markwardt (GSFC/UMD), D. M. Palmer (LANL), A. M. Parsons (GSFC), T. Sakamoto (GSFC/UMBC), G. Sato (ISAS), M. Stamatikos (GSFC/ORAU), T. N. Ukwatta (GWU) (i.e. the Swift-BAT team):
Using the data set from T-120 to T+302 sec from recent telemetry downlinks, we report further analysis of BAT GRB 090113 (trigger #339852) (Krimm, et al., GCN Circ. 8804). The BAT ground-calculated position is RA, Dec = 32.067, 33.436 deg, which is
```
   RA(J2000)  =  02h 08m 16.0s
   Dec(J2000) = +33d 26' 08.4"
```
with an uncertainty of 1.0 arcmin, (radius, sys+stat, 90% containment). The partial coding was 80%.
The mask-weighted light curve shows multiple peaks starting at ~T-10 sec and ending at ~T+30 sec. T90 (15-350 keV) is 9.1 +- 0.9 sec (estimated error including systematics).
The time-averaged spectrum from T-0.9 to T+10.0 sec is best fit by a simple power-law model. The power law index of the time-averaged spectrum is 1.60 +- 0.10. The fluence in the 15-150 keV band is 7.6 +- 0.4 x 10^-7 erg/cm2. The 1-sec peak photon flux measured from T+1.46 sec in the 15-150 keV band is 2.5 +- 0.2 ph/cm2/sec. All the quoted errors are at the 90% confidence level.
The results of the batgrbproduct analysis are available at http://gcn.gsfc.nasa.gov/notices_s/339852/BA/
GCN Circular #8809
M.R. Goad, J.P. Osborne, A.P. Beardmore and P.A. Evans (U. Leicester) report on behalf of the Swift-XRT team.
Using 752 s of XRT Photon Counting mode data and 3 UVOT images for GRB 090113, we find an astrometrically corrected X-ray position (using the XRT-UVOT alignment and matching UVOT field sources to the USNO-B1 catalogue): RA, Dec = 32.05678, +33.42857 which is equivalent to:
```
RA (J2000): 02h 08m 13.63s
Dec (J2000): +33d 25' 42.9"
```
with an uncertainty of 1.7 arcsec (radius, 90% confidence).
This position may be improved as more data are received. The latest position can be viewed at http://www.swift.ac.uk/xrt_positions. Position enhancement is described by Goad et al. (2007, A&A, 476, 1401 http://www.swift.ac.uk/xrt_positions/Goad.pdf), the current algorithm is an extension of this method.
This circular was automatically generated, and is an official product of the Swift-XRT team.
GCN Circular #8810
A. de Ugarte Postigo (ESO), J. Gorosabel (IAA-CSIC), J.H. Knapen, J.R. S=E1nchez Gallego (IAC), P. Stiles (Obs. del Sauzal) on behalf of a larger collaboration report
We have observed the field of GRB 090113 (Krimm et al., GCN 8804) with the 2.5m NOT telescope at Roque de los Muchachos Observatory (La Palma, Spain). Preliminary analysis of a 300s R-band exposure with mid time 20:45 UT (2.08h after the burst) does not show any new source within the enhanced XRT error box (Goad et al., GCN 8809) down to a 3-sigma limiting magnitude of R > 23.4.
GCN Circular #8811
P.A. Evans (U. Leicester) and H. A. Krimm (CRESST/GSFC/USRA) report on behalf of the Swift-XRT team:
We have analysed 5.5 ks of XRT data for GRB 090113 (Krimm et al. GCN Circ. 8804), beginning 93 s after the BAT trigger. The data are entirely in Photon Counting (PC) mode. The enhanced XRT position for this burst was given by Goad et al. (GCN. Circ 8809).
The light curve can be modelled with a power-law decay with a decay index of alpha=0.991 (+/-0.042).
A spectrum formed from the PC mode data can be fitted with an absorbed power-law with a photon spectral index of 2.28 (+0.20, -0.19). The best-fitting absorption column is 3.20 (+0.63, -0.58) x 10^21, in excess of the Galactic value of 6.7 x 10^20 cm^-2 (Kalberla et al. 2005). The counts to observed (unabsorbed) 0.3-10 keV flux conversion factor deduced from this spectrum is 4.0 x 10^-11 (7.8 x 10^-11) erg cm^-2 count^-1.
If the light curve continues to decay with a power-law decay index of 0.991, the count rate at T+24 hours will be 0.0063 count s^-1, corresponding to an observed (unabsorbed) 0.3-10 keV flux of 2.5 x 10^-13 (4.9 x 10^-13) erg cm^-2 s^-1.
The results of the XRT-team automatic analysis are available at http://www.swift.ac.uk/xrt_products/00339852.
This circular is an official product of the Swift-XRT team.
GCN Circular #8812
F. Olivares (MPE Garching), Andrea Rossi (Tautenburg Obs.), J. Greiner, A. Yoldas (both MPE Garching), and A. Kupcu Yoldas (ESO) report on behalf of the GROND team:
We observed the field of GRB 090113 (Swift trigger #339852; Krimm et al., GCN #8804) simultaneously in g'r'i'z'JHK with GROND (Greiner et al. 2008, PASP 120, 405) mounted at the 2.2m MPI/ESO telescope at La Silla Observatory (Chile).
Observations started at 00:35 UT on January 14th, 2009, about 6.1 hrs after the GRB trigger, and continued until the GRB location approached the 20 degree above horizon limit of the telescope, with 8.1 min of total exposures in g'r'i'z' and 12.0 min in JHK. They were performed at an average seeing of 1.8" and at an average airmass of 2.6.
We do not detect any object within the 1.7'' Enhanced Swift-XRT error circle reported by Goad et al. (GCN #8809). Co-added images yield the following upper limits (all in AB system):
```
g' >  23.3 mag,
r' >  23.4 mag,
i' >  22.6 mag,
z' >  22.6 mag,
J  >  21.3 mag,
H  >  20.7 mag and
K  >  20.0 mag.
```
These upper limits are derived based on calibrating the images against the GROND zeropoints as well as 2MASS field stars.
GCN Circular #8813
S. R. Oates (MSSL-UCL) and H.A. Krimm (CRESST/GSFC/USRA) report on behalf of the Swift/UVOT team:
The Swift/UVOT began settled observations of the field of GRB 090113 79s after the BAT trigger (Krimm et al., GCN 8804). We do not detect any source at the enhanced Swift XRT position (Evans et al. GCN 8809). Due to trigger 339853 the automatic target sequence was cut short and only the white and u finding charts were taken. In the u finding chart and in the second orbit of data the XRT position lies outside of the UVOT images. Therefore, we can only report the 3- sigma upper limit for the white finding chart exposure.
The 3-sigma upper limits for the finding chart exposure is:
```
Filter   T_start   T_stop   Exp(s)  Mag (3-sigma upper limit)
-------------------------------------------------------------
white      79       229      147     > 20.73
-------------------------------------------------------------
```
The quoted upper limits have not been corrected for the expected Galactic extinction along the line of sight of E_(B-V) = 0.08 mag. All photometry is on the UVOT photometric system described in Poole et al. (2008, MNRAS, 383, 627).
GCN Circular #8814
Induk Lee, M. Im (Seoul National University, Korea), Y. Urata (ASIAA, Taiwan; Saitama University, Japan), and T.S. Yoon (Kyungpook National University, Korea)
We have observed the field of GRB 090113 (Krimm et al. GCN 8804) with 1.0m telescope at Mt. Lemmon Optical Astronomy Observatory (LOAO) in Arizona. We took R, I, z, Y-band images beginning at UT 02:00:28 and UT 02:29:47 on January 14 2009 respectively. On stacked images with 3 x 300 secs exposures in R and I-band images, no new source was detected. The starting points of observation and 3 sigma detection limits (5" aperture mag) are as below.
```
------------------------------------------------------------------------------
Band        Starting point                     exp.             detection
limit
------------------------------------------------------------------------------
R             07h 19m 49s after trigger     3x300sec        21.1
I              07h 49m 08s after trigger     3x300sec        20.5
------------------------------------------------------------------------------
```
The detection limit was calibrated by USNO B1.0 stars. This message may be cited.
GCN Report 193.1
GCN_Report 193.1 has been posted: http://gcn.gsfc.nasa.gov/reports/report_193_1.pdf by H.A. Krimm at CRESST/GSFC/USRA titled: "Final Swift Observations of GRB 090113"
GCN Circular #8867
Becerra Gonzalez J. (IAC Tenerife), Gaug M. (IAC Tenerife), Antonelli L.A. (INAF Rome), Bastieri D. (Univ. Padova), Becker J. (Univ. Dortmund), Carosi A. (INAF Rome), Covino S. (INAF Rome), Galante N. (MPI Munich), Garczarczyk M. (IFAE Barcelona), La Barbera A. (INAF Palermo), Longo F. (INFN Trieste), Lorenz E. (ETH Zuerich), Paoletti R. (Univ. Siena), Persic M. (INAF and INFN Trieste), Scapin V. (Univ. Udine), Spiro S. (INAF Rome) and Teshima M.(MPI Munich) for the MAGIC collaboration
The MAGIC Imaging Atmospheric Cherenkov Telescope performed a follow-up observation of the BAT burst GRB090113 (GCN circular 8804, Krimm et al.). We received the GCN alert at 18:41:01 UT (T0+20s), before the sunset. Data taking with MAGIC started at 20:06:08 UT (T0+4603s), when the GRB zenith angle reached 5 degrees. The observation continued for 9405 s.
No evidence for VHE gamma-ray emission above the analysis threshold of 94 GeV was found. The observation was carried out in (less sensitive) moon-observation mode from 21:39:01 UT on.
A preliminary analysis, for the hypothesis of steady emission and assumption of a differential photon spectral index of -2.5, yields the following 95% CL differential flux upper limits, including a 30% systematic uncertainty on the telescope efficiency.
```
E (  80- 125 GeV): 0.54 * 10^-10 erg cm^-2 s^-1
E ( 125- 175 GeV): 0.99 * 10^-10 erg cm^-2 s^-1
E ( 175- 300 GeV): 0.10 * 10^-10 erg cm^-2 s^-1
E ( 300-1000 GeV): 0.08 * 10^-10 erg cm^-2 s^-1
for a time window from 20:06:01 UT to 21:37:01 UT

E ( 125- 175 GeV): 0.93 * 10^-10 erg cm^-2 s^-1
E ( 175- 300 GeV): 0.23 * 10^-10 erg cm^-2 s^-1
E ( 300-1000 GeV): 0.08 * 10^-10 erg cm^-2 s^-1
for a time window from 21:39:01 UT to 22:32:01 UT
```
We can also exclude emission of a constant flux in any 100s time bin smaller than:
```
E (  80- 125 GeV): 13.89 * 10^-10 erg cm^-2 s^-1
E ( 125- 175 GeV): 8.88 * 10^-10 erg cm^-2 s^-1
E ( 175- 300 GeV): 3.40 * 10^-10 erg cm^-2 s^-1
E ( 300-1000 GeV): 1.22 * 10^-10 erg cm^-2 s^-1
for a time window from 20:06:01 UT to 21:37:01 UT

E ( 125- 175 GeV): 13.20 * 10^-10 erg cm^-2 s^-1
E ( 175- 300 GeV): 3.88 * 10^-10 erg cm^-2 s^-1
E ( 300-1000 GeV): 2.30 * 10^-10 erg cm^-2 s^-1
for a time window from 21:39:01 UT to 22:32:01 UT
```
This message can be cited.

GCN Circular #11393
GRB 090113, the review of the sky area in plate archives
V.V. Golovnya, L.N. Kizyun, L.K. Pakuliak (Main Astro Obs, Kyiv) report:
We have undertaken the review of the sky area of GRB 090113 (Evans et al., GCN 8809) on astronegatives, collected in Ukrainian NAS Main astronomical observatory plate archive (1976-1996). All the plates with the possible object appearance are digitized using Microtek ScanMaker 9800XL TMA flatbed scanner and have been placed into Golosiiv Plate Archive database DBGPA with open access to them.

The list of plates is given in the table:
YYYYMMDD	UT      	GUA_ID         	Exp. 	LimMag
19881004	23:10:05	GUA040C001340  	16.0 	16.2
19891025	20:42:19	GUA040C001518A 	22.5 	16.0
19891025	21:38:29	GUA040C001520A 	16.0 	15.0
19891026	19:55:50	GUA040C001521B 	19.0 	15.0
19891026	21:50:31	GUA040C001525  	18.0 	15.3
19930924	23:42:35	GUA040C002246  	20.2 	15.3

GUA ID - Double Wide-angle Astrograph (D/F=40/2000, S=103"/mm)
         of the Ukrainian NAS Main astronomical observatory in Kyiv
         (Marsden's number - 83) the plate number [1].
Exp.   - Duration of the maximum exposures (minutes).
LimMag - Limited mag, derived in the 8 minutes area around the location
         given in Evans et al., GCN 8809:
         RA (J2000): 02h 08m 13.63s, Dec (J2000): +33d 25' 42.9".

The preview images can be found http://gua.db.ukr-vo.org/img/grb/090113/index.html. The images with full resolution are available via e-mail on demand. References: 1.L.Pakuliak DATABASE of GOLOSIIV PLATE ARCHIVE (DBGPA V2.0), http://gua.db.ukr-vo.org/

GCN Circular #11394
GRB 090113, the review of the sky area in plate archives
V.V. Golovnya, L.N. Kizyun, L.K. Pakuliak (Main Astro Obs, Kyiv) report:
We have undertaken the review of the sky area of GRB 090113 (Evans et al., GCN 8809) on astronegatives, collected in Ukrainian NAS Main astronomical observatory plate archive (1976-1996). All the plates with the possible object appearance are digitized using Microtek ScanMaker 9800XL TMA flatbed scanner and have been placed into Golosiiv Plate Archive database DBGPA with open access to them.

The list of plates is given in the table:
YYYYMMDD	UT      	GUA_ID         	Exp. 	LimMag
19881004	23:10:05	GUA040C001340  	16.0 	16.2
19891025	20:42:19	GUA040C001518A 	22.5 	16.0
19891025	21:38:29	GUA040C001520A 	16.0 	15.0
19891026	19:55:50	GUA040C001521B 	19.0 	15.0
19891026	21:50:31	GUA040C001525  	18.0 	15.3
19930924	23:42:35	GUA040C002246  	20.2 	15.3

GUA ID - Double Wide-angle Astrograph (D/F=40/2000, S=103"/mm)
         of the Ukrainian NAS Main astronomical observatory in Kyiv
         (Marsden's number - 83) the plate number [1].
Exp.   - Duration of the maximum exposures (minutes).
LimMag - Limited mag, derived in the 8 minutes area around the location
         given in Evans et al., GCN 8809:
         RA (J2000): 02h 08m 13.63s, Dec (J2000): +33d 25' 42.9".

New/revised redshift of 1.749 from the TOUGH project, in particular: 1205.3162 1205.3490 1205.3779 1205.4036
K-band afterglow from WHT reported as "Perley in prep." in Kruehler et al. 2012, ApJ 758, A46

Back to JG's homepage

Jochen Greiner, last update: 08-Apr-2016 [Disclaimer]
