Gamma-ray Burst 120514A

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:19:38 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     522197,   Seg_Num: 0
GRB_RA:          282.991d {+18h 51m 58s} (J2000),
                 283.154d {+18h 52m 37s} (current),
                 282.330d {+18h 49m 19s} (1950)
GRB_DEC:          -4.252d {-04d 15' 06"} (J2000),
                  -4.236d {-04d 14' 10"} (current),
                  -4.313d {-04d 18' 46"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       4886 [cnts]    Image_Peak=350 [image_cnts]
TRIGGER_DUR:     1.024 [sec]
TRIGGER_INDEX:   146     E_range: 25-100 keV
BKG_INTEN:       27999 [cnts]
BKG_TIME:        4351.79 SOD {01:12:31.79} UT
BKG_DUR:         8 [sec]
GRB_DATE:        16061 TJD;   135 DOY;   12/05/14
GRB_TIME:        4369.90 SOD {01:12:49.90} UT
GRB_PHI:         178.00 [deg]
GRB_THETA:        35.80 [deg]
SOLN_STATUS:     0x3
RATE_SIGNIF:     20.49 [sigma]
IMAGE_SIGNIF:    12.68 [sigma]
MERIT_PARAMS:     +1  +0  +0  +0  +2  +2  +0  +1 +60  +0
SUN_POSTN:        51.27d {+03h 25m 06s}  +18.69d {+18d 41' 10"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.91d {+22h 27m 39s}   -3.93d {-03d 56' 04"}
MOON_DIST:        53.61 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.05 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      283.68, 18.57 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS:        probably due to it occurring during a Malindi downlink session.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 12.65,6.69 [deg].

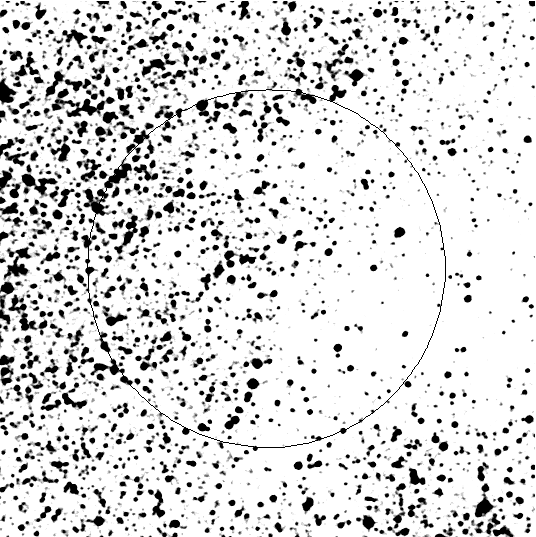

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:20:17 UT
NOTICE_TYPE:     Swift-XRT Position
TRIGGER_NUM:     522197,   Seg_Num: 0
GRB_RA:          282.9997d {+18h 52m 00.07s} (J2000),
                 283.1631d {+18h 52m 39.15s} (current),
                 282.3388d {+18h 49m 21.30s} (1950)
GRB_DEC:          -4.2649d {-04d 15' 53.6"} (J2000),
                  -4.2493d {-04d 14' 57.5"} (current),
                  -4.3260d {-04d 19' 33.4"} (1950)
GRB_ERROR:       4.9 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       3.94e-09 [erg/cm2/sec]
GRB_SIGNIF:      10.04 [sigma]
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4471.24 SOD {01:14:31.24} UT,   101.3 [sec] since BAT Trigger Time
TAM[0-3]:        327.64 237.21 261.39 243.85
AMPLIFIER:       2
WAVEFORM:        134
SUN_POSTN:        51.28d {+03h 25m 06s}  +18.69d {+18d 41' 10"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.92d {+22h 27m 40s}   -3.93d {-03d 55' 57"}
MOON_DIST:        53.61 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.20, -2.07 [deg] galactic lon,lat of the burst
ECL_COORDS:      283.69, 18.56 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        The XRT position is 0.94 arcmin from the BAT position.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:21:45 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.010d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.259d {-04d 15' 31"} (J2000)
POINT_ROLL:      69.621d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4480.18 SOD {01:14:40.18} UT,   110.3 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        3.332
N_STARS:         118
X_OFFSET:        344 [pixels]
Y_OFFSET:        512 [pixels]
X_MAX:           1303 [pixels]
Y_MAX:           1471 [pixels]
DET_THRESH:      15
PHOTO_THRESH:    8
SL_URL:          sw00522197000msufc0110.fits
SUN_POSTN:        51.28d {+03h 25m 06s}  +18.69d {+18d 41' 11"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.93d {+22h 27m 43s}   -3.93d {-03d 55' 40"}
MOON_DIST:        53.61 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN Circular #13289
V. Mangano (INAF-IASFPA), S. D. Barthelmy (GSFC), D. N. Burrows (PSU), N. Gehrels (NASA/GSFC), E. A. Hoversten (PSU), J. A. Kennea (PSU), H. A. Krimm (CRESST/GSFC/USRA), F. E. Marshall (NASA/GSFC), A. Maselli (INAF-IASFPA), D. M. Palmer (LANL), B. Sbarufatti (INAF-OAB/PSU), M. H. Siegel (PSU), C. A. Swenson (PSU) and B.-B. Zhang (PSU) report on behalf of the Swift Team:
At 01:12:49 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 120514A (trigger=522197). Swift slewed immediately to the burst. The BAT on-board calculated location is RA, Dec 282.991, -4.252 which is
```
   RA(J2000) = 18h 51m 58s
   Dec(J2000) = -04d 15' 06"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve showed a multi-peaked structure consisting of two overlapping peaks with a duration of about 80 sec and an additional weaker peak at ~T+150 sec coincident with a peak observed by the XRT. The peak count rate was ~2500 counts/sec (15-350 keV), at ~0 sec after the trigger.
The XRT began observing the field at 01:14:31.2 UT, 101.3 seconds after the BAT trigger. Using promptly downlinked data we find a bright, fading, uncatalogued X-ray source located at RA, Dec 282.99969, -4.26375 which is equivalent to:
```
   RA(J2000)  = 18h 51m 59.93s
   Dec(J2000) = -04d 15' 49.5"
```
with an uncertainty of 4.0 arcseconds (radius, 90% containment). This location is 52 arcseconds from the BAT onboard position, within the BAT error circle. This position may be improved as more data are received; the latest position is available at http://www.swift.ac.uk/sper.
A power-law fit to a spectrum formed from promptly downlinked event data gives a column density in excess of the Galactic value (6.09 x 10^21 cm^-2, Kalberla et al. 2005), with an excess column of 1.4 (+1.29/-0.95) x 10^22 cm^-2 (90% confidence).
The initial flux in the 2.5 s image was 3.94e-09 erg cm^-2 s^-1 (0.2-10 keV).

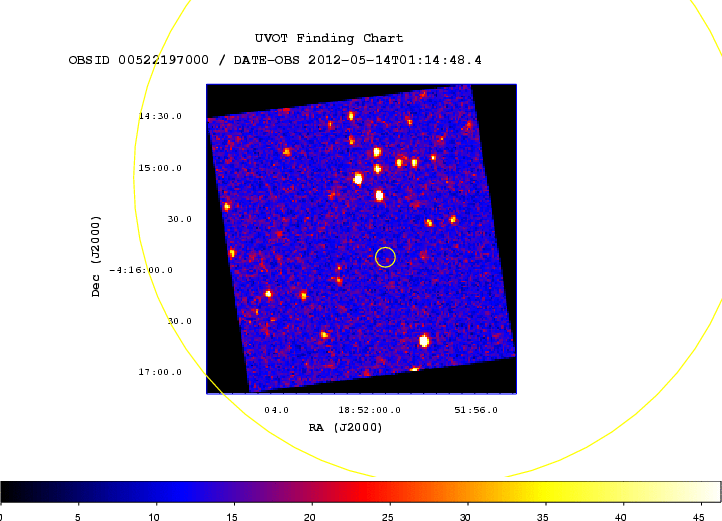

UVOT took a finding chart exposure of 150 seconds with the White filter starting 110 seconds after the BAT trigger. No credible afterglow candidate has been found in the initial data products. The 2.7'x2.7' sub-image covers 100% of the XRT error circle. Because of the density of catalogued stars, further analysis is required to report an upper limit for any afterglow in the sub-image. The 8'x8' region for the list of sources generated on-board covers 100% of the XRT error circle. Because of the density of catalogued stars, further analysis is required to report an upper limit for any afterglow in the region. No correction has been made for the large, but uncertain extinction expected.
We note that this source is 2 degrees from the Galactic plane. Although the BAT lightcurve and energy distribution is typical for a GRB, the possibility of this being a Galactic source will have to be assessed from further observations.
Burst Advocate for this burst is V. Mangano (vanessa AT ifc.inaf.it). Please contact the BA by email if you require additional information regarding Swift followup of this burst. In extremely urgent cases, after trying the Burst Advocate, you can contact the Swift PI by phone (see Swift TOO web site for information: http://www.swift.psu.edu/too.html.)

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:29:43 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 37"} (J2000)
ROLL:            69.625d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4693.78 SOD {01:18:13.78} UT,   323.9 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     358651101
X_OFFSET:        741 [pixels]
Y_OFFSET:        914 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       901
Y_GRB_POS:       1074
BINNING_INDEX:   1
IM_URL:          sw00522197000msuni0332.fits
SUN_POSTN:        51.28d {+03h 25m 08s}  +18.69d {+18d 41' 16"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.99d {+22h 27m 58s}   -3.90d {-03d 54' 10"}
MOON_DIST:        53.68 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:27:58 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 37"} (J2000)
POINT_ROLL:      69.625d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4693.78 SOD {01:18:13.78} UT,   323.9 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.844
N_STARS:         15
X_OFFSET:        421 [pixels]
Y_OFFSET:        594 [pixels]
X_MAX:           1380 [pixels]
Y_MAX:           1553 [pixels]
DET_THRESH:      8
PHOTO_THRESH:    4
SL_URL:          sw00522197000msufc0323.fits
SUN_POSTN:        51.28d {+03h 25m 07s}  +18.69d {+18d 41' 15"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.98d {+22h 27m 55s}   -3.91d {-03d 54' 29"}
MOON_DIST:        53.66 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

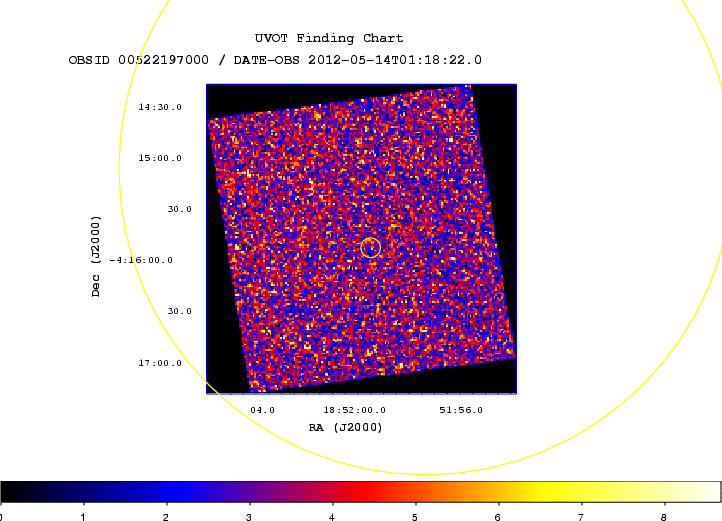

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:29:32 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 37"} (J2000)
ROLL:            69.625d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4693.78 SOD {01:18:13.78} UT,   323.9 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     358651101
X_OFFSET:        741 [pixels]
Y_OFFSET:        914 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       901
Y_GRB_POS:       1074
BINNING_INDEX:   1
IM_URL:          sw00522197000msuni0332.fits
SUN_POSTN:        51.28d {+03h 25m 08s}  +18.69d {+18d 41' 16"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.99d {+22h 27m 58s}   -3.90d {-03d 54' 12"}
MOON_DIST:        53.67 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

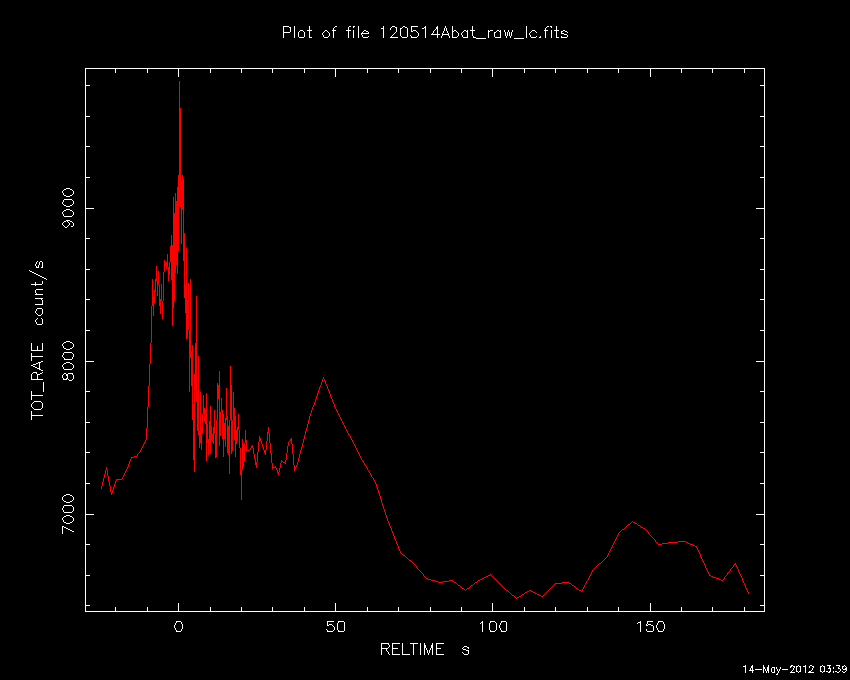

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:21:16 UT
NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     522197,   Seg_Num: 0
GRB_RA:          282.991d {+18h 51m 58s} (J2000),
                 283.154d {+18h 52m 37s} (current),
                 282.330d {+18h 49m 19s} (1950)
GRB_DEC:          -4.252d {-04d 15' 06"} (J2000),
                  -4.236d {-04d 14' 10"} (current),
                  -4.313d {-04d 18' 46"} (1950)
GRB_DATE:        16061 TJD;   135 DOY;   12/05/14
GRB_TIME:        4369.90 SOD {01:12:49.90} UT
TRIGGER_INDEX:   146
GRB_PHI:         178.00 [deg]
GRB_THETA:        35.80 [deg]
DELTA_TIME:      -51.00 [sec]
TRIGGER_DUR:     1.024 [sec]
SOLN_STATUS:     0x3
RATE_SIGNIF:     20.49 [sigma]
IMAGE_SIGNIF:    12.68 [sigma]
LC_URL:          sw00522197000msb.lc
SUN_POSTN:        51.28d {+03h 25m 06s}  +18.69d {+18d 41' 11"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.92d {+22h 27m 42s}   -3.93d {-03d 55' 46"}
MOON_DIST:        53.62 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.05 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      283.68, 18.57 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 12.65,6.69 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:22:25 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.010d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.259d {-04d 15' 31"} (J2000)
POINT_ROLL:      69.621d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4480.18 SOD {01:14:40.18} UT,   110.3 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        3.332
N_STARS:         118
X_OFFSET:        344 [pixels]
Y_OFFSET:        512 [pixels]
X_MAX:           1303 [pixels]
Y_MAX:           1471 [pixels]
DET_THRESH:      15
PHOTO_THRESH:    8
SL_URL:          sw00522197000msufc0110.fits
SUN_POSTN:        51.28d {+03h 25m 06s}  +18.69d {+18d 41' 11"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.93d {+22h 27m 44s}   -3.93d {-03d 55' 33"}
MOON_DIST:        53.61 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:35:19 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 38"} (J2000)
POINT_ROLL:      69.624d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  5248.91 SOD {01:27:28.91} UT,   879.0 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        5.829
N_STARS:         190
X_OFFSET:        181 [pixels]
Y_OFFSET:        354 [pixels]
X_MAX:           1620 [pixels]
Y_MAX:           1793 [pixels]
DET_THRESH:      21
PHOTO_THRESH:    12
SL_URL:          sw00522197000msufc0879.fits
SUN_POSTN:        51.29d {+03h 25m 09s}  +18.69d {+18d 41' 19"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      337.04d {+22h 28m 09s}   -3.89d {-03d 53' 06"}
MOON_DIST:        53.72 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:22:58 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.010d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.259d {-04d 15' 31"} (J2000)
ROLL:            69.621d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4480.18 SOD {01:14:40.18} UT,   110.3 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     358650888
X_OFFSET:        741 [pixels]
Y_OFFSET:        914 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       901
Y_GRB_POS:       1074
BINNING_INDEX:   1
IM_URL:          sw00522197000msuni0119.fits
SUN_POSTN:        51.28d {+03h 25m 07s}  +18.69d {+18d 41' 12"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.94d {+22h 27m 45s}   -3.92d {-03d 55' 26"}
MOON_DIST:        53.62 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:34:52 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 38"} (J2000)
POINT_ROLL:      69.624d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  5248.91 SOD {01:27:28.91} UT,   879.0 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        5.829
N_STARS:         190
X_OFFSET:        181 [pixels]
Y_OFFSET:        354 [pixels]
X_MAX:           1620 [pixels]
Y_MAX:           1793 [pixels]
DET_THRESH:      21
PHOTO_THRESH:    12
SL_URL:          sw00522197000msufc0879.fits
SUN_POSTN:        51.29d {+03h 25m 08s}  +18.69d {+18d 41' 19"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      337.03d {+22h 28m 08s}   -3.89d {-03d 53' 11"}
MOON_DIST:        53.72 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:23:18 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.010d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.259d {-04d 15' 31"} (J2000)
ROLL:            69.621d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4480.18 SOD {01:14:40.18} UT,   110.3 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     358650888
X_OFFSET:        741 [pixels]
Y_OFFSET:        914 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       901
Y_GRB_POS:       1074
BINNING_INDEX:   1
IM_URL:          sw00522197000msuni0119.fits
SUN_POSTN:        51.28d {+03h 25m 07s}  +18.69d {+18d 41' 12"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.94d {+22h 27m 46s}   -3.92d {-03d 55' 23"}
MOON_DIST:        53.62 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #13290
GRB 120514A: TAROT Calern observatory optical observations
----------------------------------------------------------------------
Klotz A. (IRAP-CNRS-OMP), Gendre B. (ASDC/INAF-OAR), Boer M. (UNS-CNRS-OCA), Atteia J.L. (IRAP-CNRS-OMP) report:
We imaged the field of GRB 120514A detected by SWIFT (trigger 522197) with the TAROT robotic telescope (D=25cm) located at the Calern observatory, France.
The observations started 534s after the GRB trigger. The elevation of the field increased from 37 degrees above horizon and weather conditions were good.
We co-added a series of exposures. We do not detect any OT in the XRT error box with a limiting magnitude of: t0+534s to t0+909s : R > 18.1
Galactic coordinates are lon= 29.2060 lat= -2.0542 and the galactic extinction in R band is 4.3 magnitudes estimated from D. Schlegel et al. 1998ApJ...500..525S.
Magnitudes were estimated with the nearby USNO-B1 stars and are not corrected for galactic dust extinction.
This message may be cited.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:20:31 UT
NOTICE_TYPE:     Swift-XRT Image
TRIGGER_NUM:     522197,   Seg_Num: 0
GRB_RA:          282.9997d {+18h 52m 00.0s} (J2000),
                 283.1631d {+18h 52m 39.1s} (current),
                 282.3388d {+18h 49m 21.3s} (1950)
GRB_DEC:          -4.2649d {-04d 15' 53.6"} (J2000),
                  -4.2493d {-04d 14' 57.5"} (current),
                  -4.3260d {-04d 19' 33.4"} (1950)
GRB_ERROR:       4.7 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       101 [cnts]
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4471.24 SOD {01:14:31.24} UT,   101.3 [sec] since BAT Trigger Time
CENTROID_X:      319.96,  raw= 320  [pixels]
CENTROID_Y:      294.97,  raw= 295  [pixels]
ROLL:            69.62 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -7.13
GRB_POS_XRT_Z:   38.34
IMAGE_URL:       sw00522197000msxps_rw.img
SUN_POSTN:        51.28d {+03h 25m 06s}  +18.69d {+18d 41' 10"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.92d {+22h 27m 40s}   -3.93d {-03d 55' 54"}
MOON_DIST:        53.61 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.20, -2.07 [deg] galactic lon,lat of the burst
ECL_COORDS:      283.69, 18.56 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Image.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:36:30 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 38"} (J2000)
ROLL:            69.624d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  5248.91 SOD {01:27:28.91} UT,   879.0 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     358651657
X_OFFSET:        740 [pixels]
Y_OFFSET:        913 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       900
Y_GRB_POS:       1073
BINNING_INDEX:   1
IM_URL:          sw00522197000msuni0888.fits
SUN_POSTN:        51.29d {+03h 25m 09s}  +18.69d {+18d 41' 20"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      337.05d {+22h 28m 11s}   -3.88d {-03d 52' 52"}
MOON_DIST:        53.73 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:35:56 UT
NOTICE_TYPE:     Swift-XRT Position UPDATE
TRIGGER_NUM:     522197,   Seg_Num: 0
GRB_RA:          283.0009d {+18h 52m 00.21s} (J2000),
                 283.1643d {+18h 52m 39.43s} (current),
                 282.3400d {+18h 49m 21.59s} (1950)
GRB_DEC:          -4.2626d {-04d 15' 45.3"} (J2000),
                  -4.2470d {-04d 14' 49.2"} (current),
                  -4.3237d {-04d 19' 25.1"} (1950)
GRB_ERROR:       2.1 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       1.00e-10 [erg/cm2/sec]
GRB_SIGNIF:      10.00 [sigma]
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4589.00 SOD {01:16:29.00} UT,   219.1 [sec] since BAT Trigger Time
TAM[0-3]:        100.00 100.00 100.00 100.00
AMPLIFIER:       1
WAVEFORM:        31
SUN_POSTN:        51.29d {+03h 25m 09s}  +18.69d {+18d 41' 19"}
SUN_DIST:        127.37 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      337.04d {+22h 28m 10s}   -3.88d {-03d 52' 59"}
MOON_DIST:        53.73 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.20, -2.07 [deg] galactic lon,lat of the burst
ECL_COORDS:      283.69, 18.56 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        This Notice was ground-generated -- not flight-generated.
COMMENTS:        This is an Update Notice -- the RA,Dec values herein supersede the previous XRT_POS Notice.
COMMENTS:        TAM values, flux and significance fields are not valid.
COMMENTS:        This position was automatically generated on the ground using
COMMENTS:        Photon Counting data telemetered via TDRSS (SPER data).
COMMENTS:        See http://www.swift.ac.uk/sper/docs.php for details.
COMMENTS:        This position was enhanced using UVOT field astrometry.
COMMENTS:        The probability that this is a serendipitous source in the
COMMENTS:        SPER window is 0.58% < P(seren) < 1.1%.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:36:38 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 38"} (J2000)
ROLL:            69.624d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  5248.91 SOD {01:27:28.91} UT,   879.0 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     358651657
X_OFFSET:        740 [pixels]
Y_OFFSET:        913 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       900
Y_GRB_POS:       1073
BINNING_INDEX:   1
IM_URL:          sw00522197000msuni0888.fits
SUN_POSTN:        51.29d {+03h 25m 09s}  +18.69d {+18d 41' 20"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      337.05d {+22h 28m 12s}   -3.88d {-03d 52' 51"}
MOON_DIST:        53.73 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction

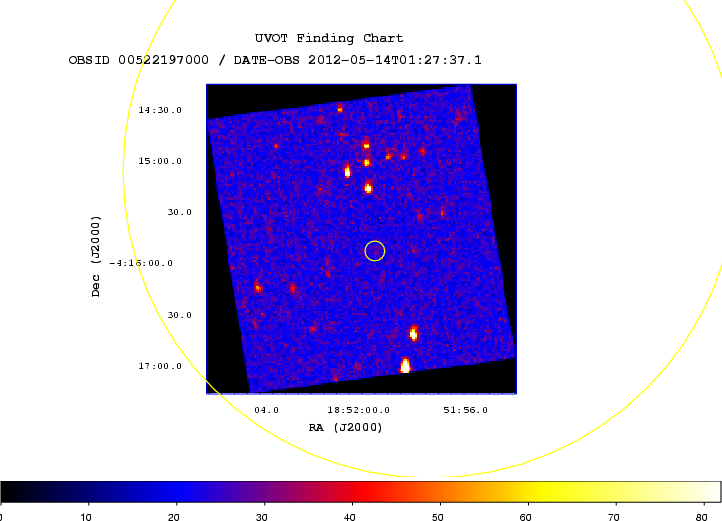

COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:28:19 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     522197,   Seg_Num: 0
POINT_RA:        283.008d {+18h 52m 02s} (J2000)
POINT_DEC:        -4.261d {-04d 15' 37"} (J2000)
POINT_ROLL:      69.625d
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4693.78 SOD {01:18:13.78} UT,   323.9 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.844
N_STARS:         15
X_OFFSET:        421 [pixels]
Y_OFFSET:        594 [pixels]
X_MAX:           1380 [pixels]
Y_MAX:           1553 [pixels]
DET_THRESH:      8
PHOTO_THRESH:    4
SL_URL:          sw00522197000msufc0323.fits
SUN_POSTN:        51.28d {+03h 25m 07s}  +18.69d {+18d 41' 15"}
SUN_DIST:        127.35 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.98d {+22h 27m 56s}   -3.91d {-03d 54' 25"}
MOON_DIST:        53.66 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.21, -2.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      283.70, 18.56 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 14 May 12 01:20:40 UT
NOTICE_TYPE:     Swift-XRT Processed Image
TRIGGER_NUM:     522197,   Seg_Num: 0
GRB_RA:          282.9997d {+18h 52m 00.0s} (J2000),
                 283.1631d {+18h 52m 39.1s} (current),
                 282.3388d {+18h 49m 21.3s} (1950)
GRB_DEC:          -4.2649d {-04d 15' 53.6"} (J2000),
                  -4.2493d {-04d 14' 57.5"} (current),
                  -4.3260d {-04d 19' 33.4"} (1950)
GRB_ERROR:       4.7 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       101 [cnts]
IMG_START_DATE:  16061 TJD;   135 DOY;   12/05/14
IMG_START_TIME:  4471.24 SOD {01:14:31.24} UT,   101.3 [sec] since BAT Trigger Time
CENTROID_X:      319.96,  raw= 320  [pixels]
CENTROID_Y:      294.97,  raw= 295  [pixels]
ROLL:            69.62 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -7.13
GRB_POS_XRT_Z:   38.34
IMAGE_URL:       sw00522197000msxps_rw.img
SUN_POSTN:        51.28d {+03h 25m 06s}  +18.69d {+18d 41' 10"}
SUN_DIST:        127.36 [deg]   Sun_angle= 8.5 [hr] (West of Sun)
MOON_POSTN:      336.92d {+22h 27m 41s}   -3.93d {-03d 55' 53"}
MOON_DIST:        53.61 [deg]
MOON_ILLUM:      38 [%]
GAL_COORDS:       29.20, -2.07 [deg] galactic lon,lat of the burst
ECL_COORDS:      283.69, 18.56 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Processed Image.

GCN Circular #13291
W. H. Baumgartner (GSFC/UMBC), S. D. Barthelmy (GSFC), J. R. Cummings (GSFC/UMBC), E. E. Fenimore (LANL), N. Gehrels (GSFC), H. A. Krimm (GSFC/USRA), V. Mangano (INAF-IASFPA), C. B. Markwardt (GSFC), D. M. Palmer (LANL), T. Sakamoto (GSFC/UMBC), G. Sato (ISAS), M. Stamatikos (OSU), J. Tueller (GSFC), T. N. Ukwatta (MSU) (i.e. the Swift-BAT team):
Using the data set from T-239 to T+721 sec from the recent telemetry downlink, we report further analysis of BAT GRB 120514A (trigger #522197) (Mangano, et al., GCN Circ. 13289). The BAT ground-calculated position is RA, Dec = 283.002, -4.258 deg which is
```
   RA(J2000)  =  18h 52m 00.4s
   Dec(J2000) = -04d 15' 28.6"
```
with an uncertainty of 1.1 arcmin, (radius, sys+stat, 90% containment). The partial coding was 61%.
The mask-weighted light curve shows 3 main peaks. The first starts at ~T-40 sec, and peaks at ~T+1 sec. The second overlaps the tail of the first and peaks at ~T+52 and ends at ~T+115 sec. The third peak starts at ~T+120 sec, peaks at ~T+150 sec and ends at ~T+200 sec. At the 2-sigma level, there is possible precursor emission from ~T-160 to T-80 sec, and a possible forth peak from ~T+260 to ~T+420 sec. T90 (15-350 keV) is 164.4 +- 5.8 sec (estimated error including systematics).
The time-averaged spectrum from T-8.75 to T+165.55 sec is best fit by a simple power-law model. The power law index of the time-averaged spectrum is 1.62 +- 0.10. The fluence in the 15-150 keV band is 2.8 +- 0.2 x 10^-6 erg/cm2. The 1-sec peak photon flux measured from T+0.22 sec in the 15-150 keV band is 1.9 +- 0.2 ph/cm2/sec. All the quoted errors are at the 90% confidence level.
The results of the batgrbproduct analysis are available at http://gcn.gsfc.nasa.gov/notices_s/522197/BA/
GCN Circular #13292
P.A. Evans, M.R. Goad, J.P. Osborne and A.P. Beardmore (U. Leicester) report on behalf of the Swift-XRT team.
Using 932 s of XRT Photon Counting mode data and 2 UVOT images for GRB 120514A, we find an astrometrically corrected X-ray position (using the XRT-UVOT alignment and matching UVOT field sources to the USNO-B1 catalogue): RA, Dec = 283.00078, -4.26359 which is equivalent to:
```
RA (J2000): 18h 52m 0.19s
Dec (J2000): -04d 15' 48.9"
```
with an uncertainty of 1.8 arcsec (radius, 90% confidence).
This position may be improved as more data are received. The latest position can be viewed at http://www.swift.ac.uk/xrt_positions. Position enhancement is described by Goad et al. (2007, A&A, 476, 1401) and Evans et al. (2009, MNRAS, 397, 1177).
This circular was automatically generated, and is an official product of the Swift-XRT team.
GCN Circular #13293
A. de Ugarte Postigo (IAA-CSIC, DARK/NBI), C. de Breuck, T. Stanke, C. Agurto (ESO), M. Valencia-S. (U. Koeln), A. Remy (CEA-Saclay), F. Montenegro (ESO), J. Gorosabel, R. Sanchez-Ramirez (IAA-CSIC), J.P.U. Fynbo (DARK/NBI) report on behalf of a larger collaboration:
We have observed the field of GRB 120514A (Mangano et al. GCNC 13289) using LABOCA/APEX at Chajnantor (Chile) in the 870 micrometer band. The weather conditions were good, with precipitable water vapour at the time of the observation of ~0.5mm. Observations began on May 14 at 4:55 UT (3.7 hr after the burst) and were performed using the photometric mode, centred at the enhanced X-ray position (Evans et al. GCNC 13292).
On a preliminary analysis of 160 min on source, we detect a flux density at the position of the afterglow of 6.2+/-2.3 mJy.
Further observations are foreseen. We encourage follow-up observations in other wavelengths.
GCN Circular #13294
G. Stratta (ASDC), P. D'Avanzo (INAF-OAB), M.C. Stroh (PSU), D.N. Burrows (PSU), J.A. Kennea (PSU), K.L. Page (U. Leicester), C. Pagani (U. Leicester), A.P. Beardmore (U. Leicester), V. D'Elia (ASDC) and V. Mangano report on behalf of the Swift-XRT team:
We have analysed 6.5 ks of XRT data for GRB 120514A (Mangano et al. GCN Circ. 13289), from 90 s to 28.8 ks after the BAT trigger. The data comprise 132 s in Windowed Timing (WT) mode (the first 10 s were taken while Swift was slewing) with the remainder in Photon Counting (PC) mode. The enhanced XRT position for this burst was given by Evans et al. (GCN. Circ 13292).
The late-time light curve (from T0+4.4 ks) can be modelled with a power-law decay with a decay index of alpha=1.22 (+0.29, -0.24).
A spectrum formed from the WT mode data can be fitted with an absorbed power-law with a photon spectral index of 1.90 (+0.12, -0.11). The best-fitting absorption column is 1.68 (+0.15, -0.14) x 10^22 cm^-2, in excess of the Galactic value of 6.1 x 10^21 cm^-2 (Kalberla et al. 2005). The PC mode spectrum has a photon index of 2.2 (+/-0.3) and a best-fitting absorption column of 2.4 (+0.5, -0.4) x 10^22 cm^-2. The counts to observed (unabsorbed) 0.3-10 keV flux conversion factor deduced from this spectrum is 6.8 x 10^-11 (2.3 x 10^-10) erg cm^-2 count^-1.
A summary of the PC-mode spectrum is thus:
```
Total column:	     2.4 (+0.5, -0.4) x 10^22 cm^-2
Galactic foreground: 6.1 x 10^21 cm^-2
Excess significance: 6.6 sigma
Photon index:	     2.2 (+/-0.3)
```
The results of the XRT-team automatic analysis are available at http://www.swift.ac.uk/xrt_products/00522197.
This circular is an official product of the Swift-XRT team.
GCN Circular #13296
A.J Levan (Warwick), N.R. Tanvir, K. Wiersema (Leicester), T. Wold (JAC) report on behalf of a larger collaboration:
"We obtained K-band observations of GRB 120514A (Mangano et al. GCN 13289) with the United Kingdom Infrared Telescope (UKIRT) on Mauna Kea, with a midpoint approximately 12 hours after the initial burst detection. Comparison of a preliminary reduction of these images with archival images taken as part of the UKIRT Galactic Plane Survey (GPS; Lucas et al. 2008 MNRAS 391 136) does not reveal any new sources within the refined XRT position (Evans et al. GCN 13292). Given the crowded nature of the field we do note there are several sources whose location is formally consistent with the X-ray position, but none of these show clear evidence for variability between the two epochs."
GCN Circular #13297
E. A. Hoversten (PSU) and V. Mangano (INAF-IASFPA) report on behalf of the Swift/UVOT team:
The Swift/UVOT began settled observations of the field of GRB 120514A 110 s after the BAT trigger (Mangano et al., GCN Circ. 13289). No optical afterglow consistent with the enhanced XRT position (Evans et al., GCN Circ. 13292) is detected in the initial UVOT exposures. Preliminary 3-sigma upper limits using the UVOT photometric system (Breeveld et al. 2011, AIP Conf. Proc. 1358, 373) for the first finding chart (FC) exposure and subsequent exposures are:
```
Filter         T_start(s)   T_stop(s)      Exp(s)         Mag

white_FC           110          260          147         >20.6
u_FC               324          574          246         >20.5
white              110         1029          295         >20.9
u                  324          574          246         >20.5
```
The magnitudes in the table are not corrected for the Galactic extinction due to the reddening of E(B-V) = 1.63 in the direction of the burst (Schlegel et al. 1998).
GCN Circular #13298
A. Nicuesa Guelbenzu (TLS Tautenburg), S. Schmidl (TLS Tautenburg), V. Sudilovsky (MPE Garching), and J. Greiner (MPE Garching) report on behalf of the GROND team:
We observed the field of GRB 120514A (Mangano et al., GCN #13289) simultaneously in g'r'i'z'JHK with GROND (Greiner et al. 2008, PASP 120, 405) mounted at the 2.2 m MPG/ESO telescope at La Silla Observatory (Chile).
Observation started at 03:39 UT, 2.4 h after the trigger and ended at 11:10 UT.
We detect two sources just outside of the enhanced 1.8" XRT error circle at RA,DEC 18:52:00.1, -04:15:50.8 and 18:52:00.2, -04:15:46.8 with a positional uncertainty of +/- 0.3". We note that neither source varies in r' brightness relative to USNO field stars over a period of 2 hours. Additionally, the southern source exhibits a thermal spectrum. Therefore, neither of these two sources are likely associated with the GRB.
Based on exposures of 1480 seconds in g'r'i'z' and 1200 seconds in JHK, we do not detect a source within the 1.8" XRT error circle of the X-ray counterpart candidate (Evans et al., GCN #13292) to the following 3-sigma upper limits (AB system):
```
g' > 22.7,
r' > 23.0
i' > 23.0
z' > 23.0
J > 20.5
H > 19.6
K > 18.5
```
These magnitudes are calibrated against GROND zeropoints (g'r'i'z') and 2MASS (JHK) and are not corrected for the expected Galactic foreground extinction corresponding to a reddening of E_(B-V)=1.7 mag in the direction of the burst (Schlegel et al. 1998).
GCN Circular #13301
M. Akiyama, N. Ohmori, M. Yamauchi (Univ. of Miyazaki), K. Yamaoka, Y. E. Nakagawa (Waseda U.), W. Iwakiri, M. Tashiro, Y. Terada, T. Yasuda, K. Takahara, M. Asahina, S. Kobayashi, A. Sakamoto, H. Ueno (Saitama U.), Y. Hanabata, T. Kawano, K. Takaki, Y.Tanaka, R. Nakamura, M. Ohno, Y. Fukazawa (Hiroshima U.), S. Sugita (Nagoya U.), M. Kokubun, T. Takahashi (ISAS/JAXA), Y. Urata, P. Tsai (NCU), K. Nakazawa, K. Makishima (Univ. of Tokyo), on behalf of the Suzaku WAM team, report:
The long GRB 120514A (Swift/BAT trigger #522197 ; Siegel et al., GCN 13289) triggered the Suzaku Wide-band All-sky Monitor (WAM) which covers an energy range of 50 keV - 5 MeV at 01:12:43.252 UT (=T0).
The observed light curve shows a single peak starting at T0-2 s, ending at T0+16 s, with a duration (T90) of about 14 seconds. The fluence in 100 - 1000 keV was 1.62(-0.69, +0.50) x 10^-6 erg/cm^2. The 1-s peak flux measured from T0 s was 0.71(-0.20, +0.18) photons/cm^2/s in the same energy range.
Preliminary result shows that the time-averaged spectrum from T0-2 s to T0+16 s is well fitted by a single power-law with a photon index of 2.30 (-0.54, 0.75) (chi^2/d.o.f = 43.1/32).
All the quoted errors are at statistical 90% confidence level, in which the systematic uncertainties are not included.
The light curves for this burst are now available at:
http://www.astro.isas.jaxa.jp/suzaku/HXD-WAM/WAM-GRB/grb/trig/grb_table.html
GCN Report 397.1
GCN_Report 397.1 has been posted: http://gcn.gsfc.nasa.gov/reports/report_397_1.pdf by V. Mangano at INAF IASF Pa titled: "Swift Observations of GRB 120514A"

Back to JG's homepage

Jochen Greiner, last update: 21-May-2012 [Disclaimer]
